- Stock: In Stock
- Brand: MSI
- SKU: MEG X670E ACE
Key Features:
- Supported CPU: Ryzen 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Max 128GB
- Graphics Output: 1x Type-C Display port
- Features: 10G Super LAN with Wi-Fi 6E solution
| Motherboard Specification | |
| Chipset | AMD X670 |
| Form Factor | E-ATX 277mmx304.8mm |
| Audio | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Socket | AM4 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 128GB |
| Supports | |
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Supported Memory | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G port RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| Connectors | |
| LAN | Marvell AQC113-B1-C 10Gbps LAN |

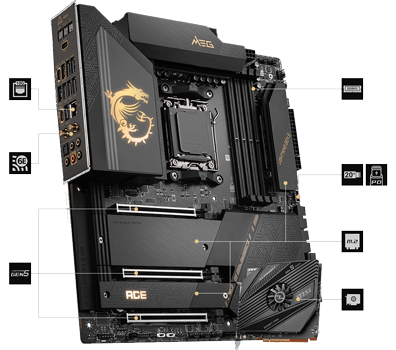

| USB | 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 8x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 2x USB 3.2 Gen2x2 Type C ports (Rear) |
| HDMI | 1x HDMI 2.1 with HDR port |
| Display Port | 1x DisplayPort 1.4 port with HBR3 |
| Ports & Slots | |
| Slots | 4 DIMMs |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2x2 Type-C ports 1x USB 3.2 Gen 2x2 Type C ports V-check point |
| PCI-E | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
| Physical Specification | |
| Dimensions (W x D x H) | 304*243mm |
| Warranty Information | |
| Warranty | 03 Year |
MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard

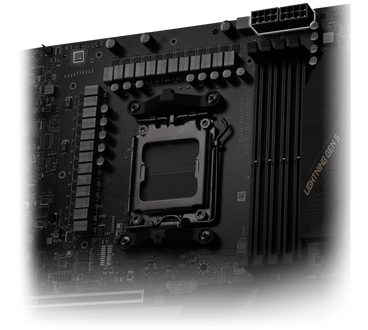

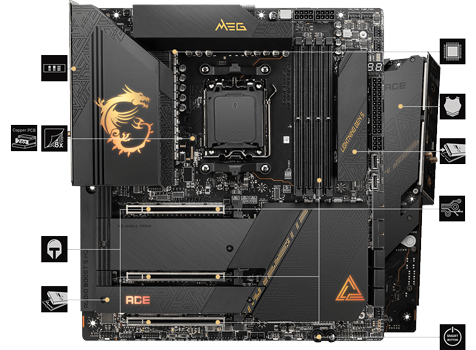

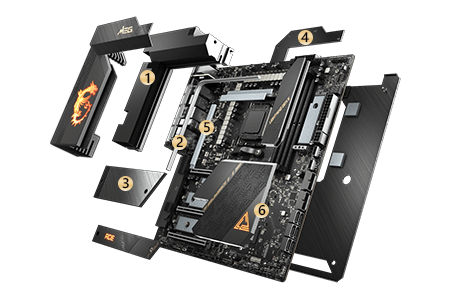

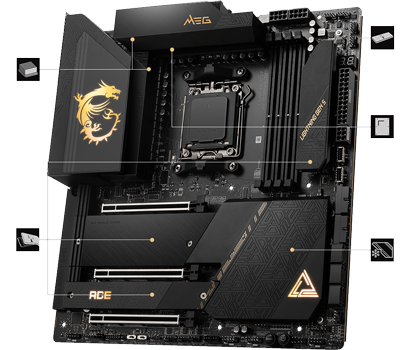

The MSI MEG X670E ACE Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, Maximum Memory Capacity of up to 128GB. It features a 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors ready to unleash the maximum performance. It has a stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr, and Frozr AI software to ensure extreme performance with low temperature. The motherboard is made of an 8 Layer PCB with 2oz Thickened Copper that provides higher performance and long-lasting system stability without any compromise. The MSI MEG X670E ACE offers onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for maximum storage performance. It can deliver a lightning-fast game experience with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MEG X670E ACE Motherboard offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs. The MSI MEG X670E ACE comes with 3 years of warranty.
