• Apple M5 Pro: 15-core CPU and 16-core GPU
• 24GB unified memory with 307GB/s memory bandwidth
• 512GB SSD storage
• 3× Thunderbolt 5, 2× USB-C, HDMI and 2.5Gb Ethernet
• Wi-Fi 7, Bluetooth 6 and support for three displays

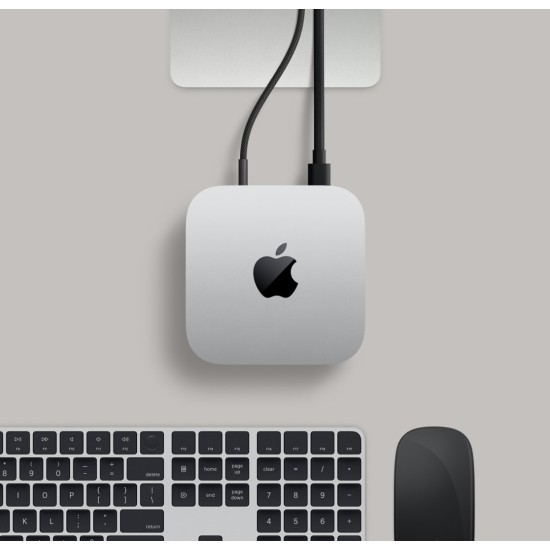

Apple Mac mini M5 Pro 15-Core CPU 16-Core GPU 24GB Unified Memory 512GB SSD
The compact Mac mini pairs Apple M5 Pro performance with high-bandwidth unified memory and fast SSD storage for demanding creative work, software development and professional workflows. It comes in Apple’s compact five-by-five-inch silver enclosure.
Key Features
• Apple M5 Pro chip with 15-core CPU, 16-core GPU and 16-core Neural Engine
• 24GB unified memory with 307GB/s memory bandwidth and 512GB SSD storage
• Supports up to three external displays through Thunderbolt 5 and HDMI

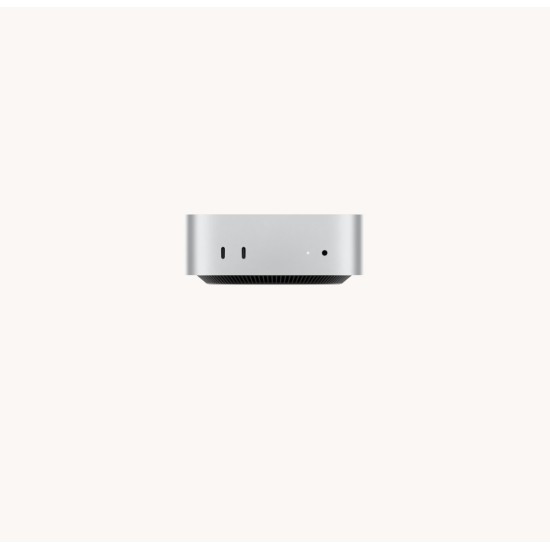

• Two front USB-C ports plus three rear Thunderbolt 5 ports, HDMI, 2.5Gb Ethernet and headphone jack
• Apple N1 wireless chip with Wi-Fi 7, Bluetooth 6 and Thread; macOS with Apple Intelligence
Availability: Upcoming. Price will be announced.
| Charger Specification | |
| Color | Silver |
| Core Component | |
| Processor | Apple M5 Pro chip 15-core CPU with 5 super cores and 10 performance cores 16-core GPU with Neural Accelerators and hardware-accelerated ray tracing 16-core Neural Engine 307GB/s memory bandwidth Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW; AV1 decode |
| SSD | 512GB SSD Configurable to 1TB, 2TB, 4TB or 8TB |
| GPU Specification | |
| Display Support | Supports up to three external displays over any combination of Thunderbolt and HDMI ports. Three displays up to 6K at 60Hz or 4K at 165Hz. Up to two displays: one up to 8K at 60Hz, 5K at 120Hz or 4K at 240Hz, plus a second up to 5K at 120Hz or 4K at 200Hz. Thunderbolt 5 ports support native DisplayPort 2.1 speeds, VRR, HDR and multichannel audio. |
| Memory Specification | |
| Memory Type | 24GB unified memory Configurable to 48GB or 64GB 307GB/s memory bandwidth |
| Network & Wireless | |
| Network Standard | Apple N1 wireless networking chip Wi-Fi 7 (802.11be) Bluetooth 6 Thread networking technology 100/1000/2500BASE-T Multi-Gigabit Ethernet |
| Ports & Slots | |

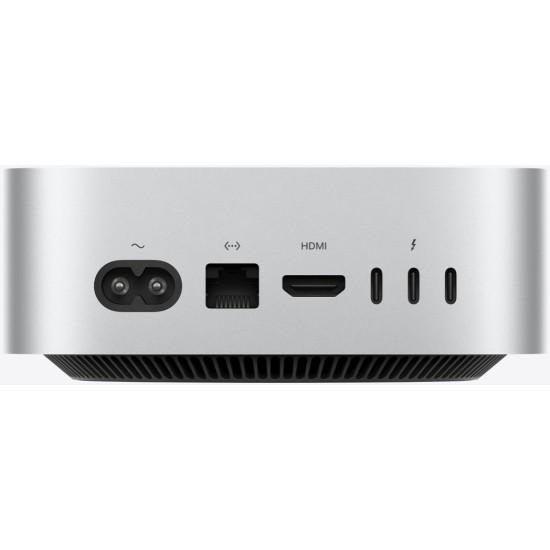

| Ports | Front: Two USB-C ports supporting USB 3 up to 10Gb/s; 3.5mm headphone jack Rear: Three Thunderbolt 5 (USB-C) ports up to 120Gb/s with USB 4 up to 40Gb/s and DisplayPort support; HDMI port; 2.5Gb Ethernet port 2.5Gb Ethernet is configurable to 10Gb Ethernet |
| Software | |
| Operating System | macOS Apple Intelligence and Siri AI support Supports iPhone Mirroring, window tiling and Sidecar |
| Physical Specification | |
| Dimensions (W x D x H) | Width: 5.0 inches (12.7 cm) Depth: 5.0 inches (12.7 cm) Height: 2.0 inches (5.0 cm) Weight: 1.6 pounds (0.73 kg) |
