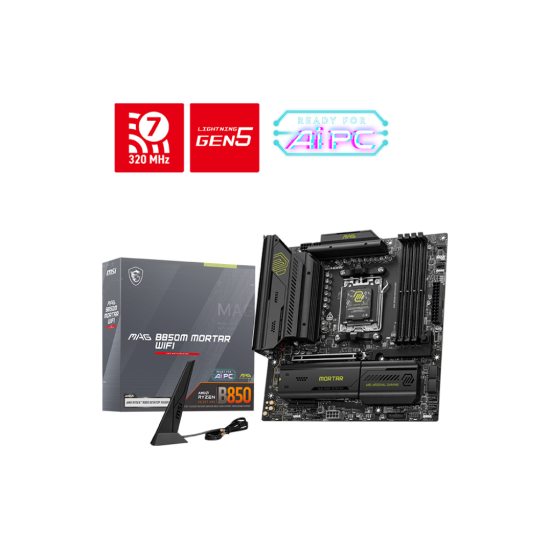

MSI MAG B850M MORTAR WIFI AM5 DDR5 Motherboard

MSI MAG B850M MORTAR WIFI AM5 DDR5 Motherboard
MSI MAG B850M MORTAR WIFI AM5 DDR5 Motherboard
  • Stock: In Stock
  • Brand: MSI
  • Model: MAG B850M MORTAR WIFI
  • SKU: MAG B850M MORTAR WIFI
Based on 0 reviews. - Write a review
৳33,500
EMI starts at ৳1,156/month. View all 26 banks EMI plans >
Key Features:
  • Supports for AMD Ryzen 7000/8000/9000 series desktop processors
  • Support for DDR5 8200 MHz memory (OC)
  • 3 M.2 PCIe slots (one 5.0 x4 slot)
  • High-definition 7.1 audio with Realtek ALC897 chipset
  • 5 GbE LAN connector and Wi-Fi 7
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Details

MSI MAG B850M MORTAR WIFI AM5 DDR5 Motherboard

The MAG B850M MORTAR WIFI AM5 Motherboard is designed to deliver exceptional performance and cutting-edge features for gaming enthusiasts and professionals. Built on the AMD B850 chipset, it supports the latest AMD Ryzen™ 9000, 8000, and 7000 series processors, ensuring robust performance for demanding tasks. With four DDR5 DIMM slots, the motherboard supports up to 256GB of memory and overclocking speeds of up to 8200+ MT/s, providing unparalleled multitasking and gaming experiences. Equipped with PCIe 5.0 technology, it offers blazing-fast connectivity for high-performance GPUs and storage solutions. The inclusion of Wi-Fi 7 and Realtek® 8126VB 5G LAN ensures seamless and ultra-fast networking, making it ideal for both online gaming and streaming.

The motherboard features multiple USB ports, including USB 10Gbps Type-C, along with HDMI 2.1 support for 4K resolution at 60Hz. Its audio system, powered by Realtek® ALC897, delivers rich 7.1-channel high-definition sound for an immersive gaming experience. With an ATX form factor, RGB LED headers, and robust internal I/O options, the MSI MAG B850M MORTAR WIFI offers superior customizability and durability. Backed by a 3-year warranty, it’s the perfect choice for gamers and tech enthusiasts.

Robust 12 Duet Rail Power System with P-PAK

Featuring exclusive MSI Core Boost technology, dual 8-pin power connectors and EZ OC Tuning functions, the MAG B850M MORTAR WIFI is able to sustain heavy CPU power loads to support resource-heavy games and software to suit your needs:

Digital PWM IC

12 Duet Rail Power System (P-PAK)

2 Phase SOC Power

1 Phase MISC Power

Features of MSI  MAG B850M MORTAR WIFI AM5 DDR5 Motherboard

  • DDR5 Memory Support with High Overclocking Capabilities: Supports up to 256GB of DDR5 memory with overclocking speeds of up to 8200+ MT/s, offering exceptional performance for gamers and power users alike.
  • Next-Gen PCIe 5.0 Slot for Maximum GPU Performance: Features a PCIe 5.0 x16 slot for the latest AMD Ryzen™ 9000/7000 Series processors, providing unparalleled bandwidth for cutting-edge graphics cards and future-ready upgrades.
  • Wi-Fi 7 Integration for Ultra-Fast Wireless Connectivity: Built-in Wi-Fi 7 with MU-MIMO support ensures blazing-fast wireless speeds of up to 5.8Gbps, catering to seamless gaming, streaming, and multitasking.
  • Versatile USB Connectivity Options: Offers multiple USB ports, including USB 10Gbps Type-A and Type-C ports, ensuring high-speed data transfers and connectivity for modern peripherals.
  • Optimized Audio Performance with Realtek ALC897: Includes Realtek® ALC897 7.1-channel high-definition audio for immersive sound quality, enhancing gaming and multimedia experiences.
  • Enhanced RGB Customization: Comes with 3 Addressable V2 RGB LED connectors and 1 standard RGB LED connector, allowing gamers to personalize their builds with stunning lighting effects.
  • Robust Build with Advanced Cooling Options: Equipped with multiple fan headers, including a dedicated Pump_Sys Fan header, ensuring optimal thermal management for high-performance setups.
Specification
Core Component
Memory Maximum Capacity up to 256GB DDR5
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Motherboard Specification
Chipset AMD B850
Socket AM5
Form Factor m-ATX
243.84mmx243.84mm
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Network & Wireless
Wi-Fi Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LAN Realtek® 8126-VB 5G LAN
Supports
Supported CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Connectors
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
HDMI 1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Ports & Slots
PCI-E 1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Slots 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

M2_3 slot
• Supports up to PCIe 4.0 x2

** Please refer to the manual for M.2 SSD heatsink restrictions

1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Warranty Information
Warranty 3 Years Warranty
