- Stock: Upcoming
- Brand: MSI
- Model: RTX 5060 TI 16G VENTUS 2X OC WHITE
- SKU: RTX 5060 TI 16G VENTUS 2X OC WHITE
Key Features:
- Powered by NVIDIA Blackwell Architecture and AI
- 16GB 128-Bit GDDR7
- 1 x HDMI 2.1b 3 x DisplayPort 2.1b
- 4608 CUDA Cores
- PCI Express 5.0
MSI NVIDIA GeForce RTX 5060 Ti 16GB VENTUS 2X OC White
VENTUS focuses on the essentials to tackle any challenge. The MSI GeForce RTX 5060 Ti VENTUS 2X OC is a high-performance graphics card built on NVIDIA's cutting-edge Blackwell architecture. Featuring 4608 CUDA cores and 16GB of ultra-fast GDDR7 memory with a 128-bit bus, this GPU delivers exceptional gaming and creative capabilities. The card boasts a PCIe 5.0 interface and offers versatile connectivity with three DisplayPort v2.1b ports and one HDMI 2.1b port. Equipped with MSI's Stormforce fan technology and a dual-fan cooling system, the VENTUS 2X OC ensures optimal thermal management during intense gaming sessions. The card's robust design includes a vented metal backplate for reinforcement and incorporates MSI's Zero Frozr technology, which stops the fans at low temperatures for silent operation. Paired with MSI Centre and the renowned Afterburner software, this graphics card is everything you need for gaming, content-creation or AI workloads.

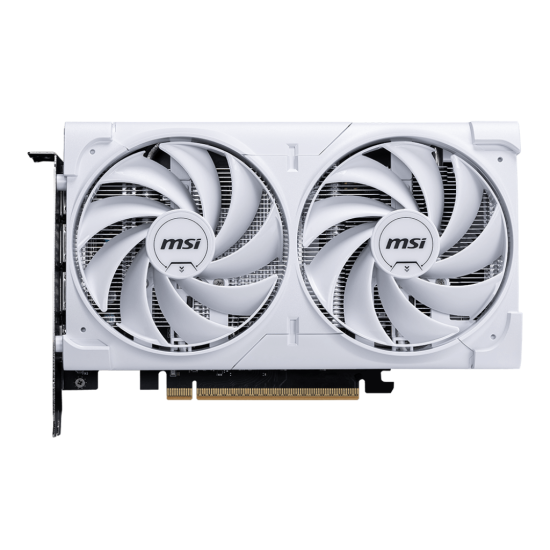

Dual, Stormforce Fans
Two fans and a huge heatsink ensure a cool and quiet experience for you. With seven fan blades, claw texturing and a circular arc, everything about MSI’s cooling system is designed for optimal airflow with minimal noise.

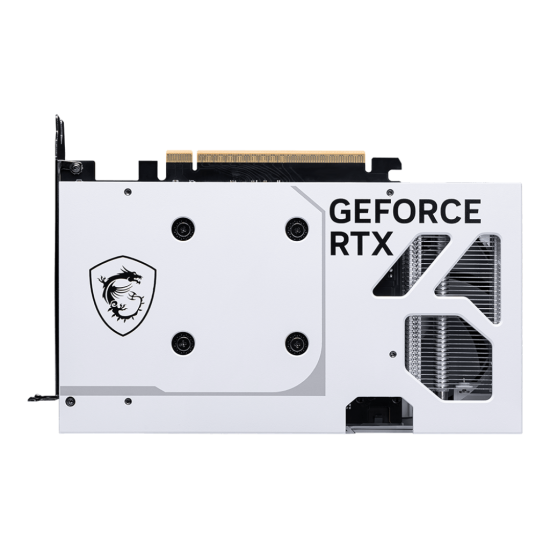

Metal Backplate
A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
Zero Frozr
The fans completely stop when temperatures are relatively low, eliminating all noise.
Enhanced Power Control
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Peace of Mind
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
MSI Centre
The exclusive MSI Centre software lets you monitor, tweak and optimise MSI products in real-time.
MSI Afterburner
Take full control with the world's most recognised and widely used graphics card overclocking software.
Features
• Powered by the NVIDIA Blackwell architecture and DLSS 4.
• 16GB GDDR7 with 128-bit memory interface.
• Stormforce Cooling fans.
• DrMOS power stage solution for enhanced voltage control.
• Vented Metal Backplate with Thermal Pads.
• MSI Centre and Afterburner.
| GPU Specification | |
| Core Clock | Extreme Performance: 2617 MHz (MSI Center)<br> Boost: 2602 MHz |
| GPU Core | 4608 |
| Video Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x16 |
| Slot Size | Dual Slot |
| Display Outputs | 3 x DisplayPort 2.1b<br> (up to 15360×8460 @ 60Hz)<br> 1 x HDMI® Connector<br> (Supports 4K 480Hz HDR, 8K 120Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification) |
| Multi Display Capability | Quad Display |
| OpenGL | 4.6 |
| HDCP Support | 2.3 |
| Cooling | STORMFORCE FAN |
| Ray Tracing Core | 36 |
| TMUs | 144 |
| ROPs | 48 |
| Shader Model | 6.8 |
| DirectX | 12 Ultimate (12_2) |
| Recommended Power Supply | 600W |
| Power Consumption | 180W |
| Power Input | 8-pin x1 |
| Physical Specification | |
| Colors | White |
| Dimensions (W x D x H) | 227 x 126 x 41 mm |
| Warranty Information | |
| Warranty | 3 Years |
