- Stock: In Stock
- Brand: MSI
- Model: MAG B760 TOMAHAWK WIFI DDR5
- SKU: MAG B760 TOMAHAWK WIFI
Key Features:
- Supports 12th/ 13th Gen Intel Processors
- Supports DDR5 Memory, up to 7000+(OC) MHz
- 12+1+1 Duet Rail Power System
- PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution

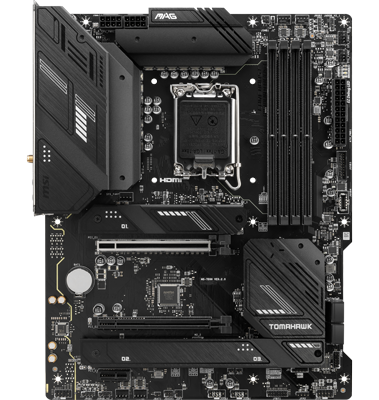

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard
UNITE AS ONEMeet the B760 TOMAHAWK WiFi, the latest edition to the MAG B670 series, designed and constructed to draw the full potential from the latest 13th Generation Raptor-Lake CPUs, by combining durability, value and stunning aesthetics with a military-inspired twist. Boasting support for DDR5 memory, an enhanced 12+1+1 duet rail power system, lightning-fast PCIe 5.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.
Intel B760Chipset
LGA 1700CPU Socket
12th/13th Gen Intel® Core™ ProcessorsCompatible CPU
ATXForm Factor
Outstanding Cooling Solution
7W/MK MOSFET THERMAL PADS
M.2 SHIELD FROZR
PUMP FAN SUPPORT
EXTENDED HEATSINK

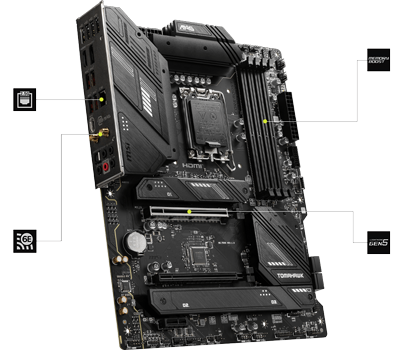

High-Speed Transmission
2.5G LAN
MEMORY BOOST

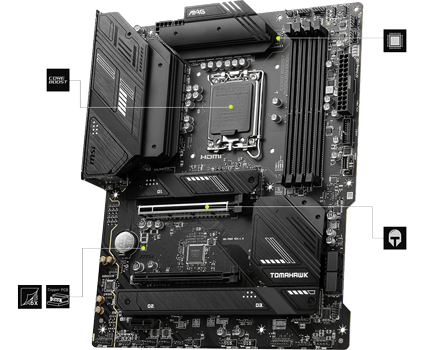

A Stable Cornerstone for Your System

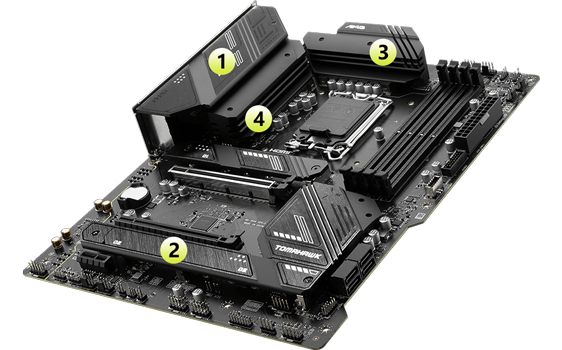

Massive Cooling Potential
1. EXTENDED HEATSINKSLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.
2. M.2 SHIELD FROZRM.2 thermal solutions keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
3. HEAVY PLATED VRM HEATSINKThis VRM heatsink, covers the upper MOS and helps to increase heat dissipation.
4. 7W/MK THERMAL PADHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.

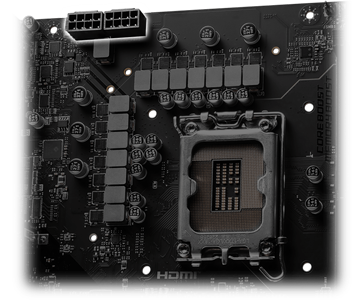

Aggressive Power Design
12 PHASECore 75A Power Stage
1 PHASEGT Power
1 PHASEAUX Power
12+1+1 DUET RAIL POWER SYSTEMUnleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.

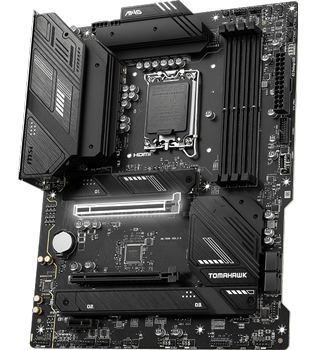

Meet The Latest Generation
LIGHTNING GEN 5 PCI-ESay hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.
SMT PCIE 5.0 SLOTThe advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.
Maximise Your Storage Capabilities
FAST AND FUTURE READY STORAGEMSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
Fully Comprehensive I/O Panel
REAR:1: USB 2.0
Motherboard Specification | |
Chipset | INTEL B760 |
Form Factor | ATX 243.84mmx304.8mm |
Audio | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF outpu |
Socket | LGA 1700 |
Memory Specification | |
Memory Type | DDR5 |
Memory Capacity | 128GB |
Network & Wireless | |
Wi-Fi | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
LAN | Realtek® 2.5Gbps LAN |
Supports | |
Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7000+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
Connectors | |
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
HDMI | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x HDMI |
Display Port | Support DP 1.4, maximum resolution of 8K 60Hz 1x DisplayPort |
Ports & Slots | |
Slots | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
PCI-E | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot |
Warranty Information | |
Warranty | 3 Years |
