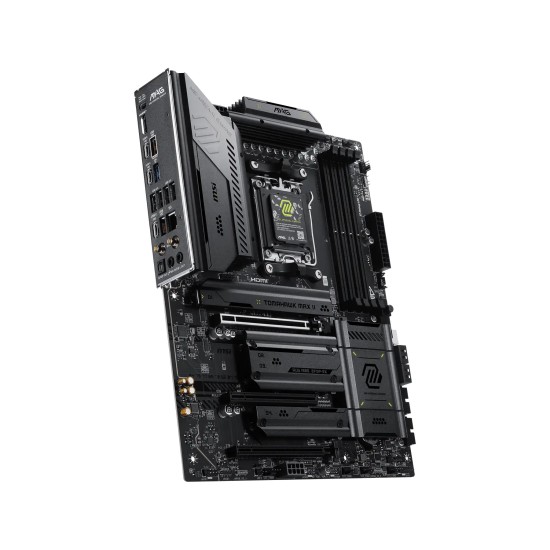

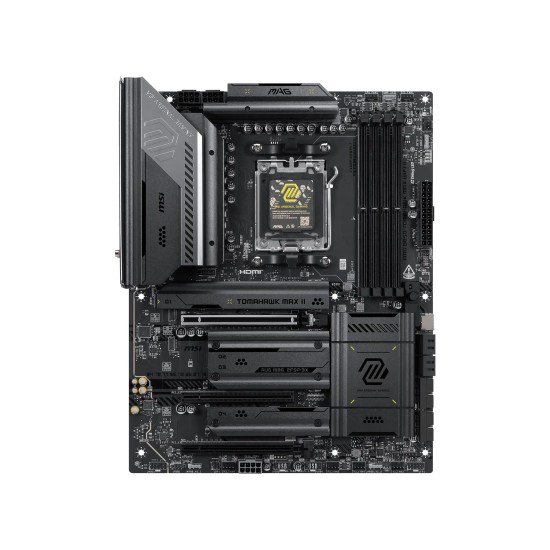

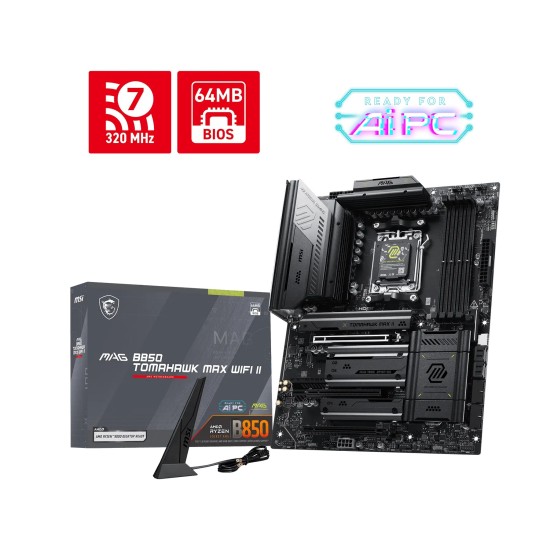

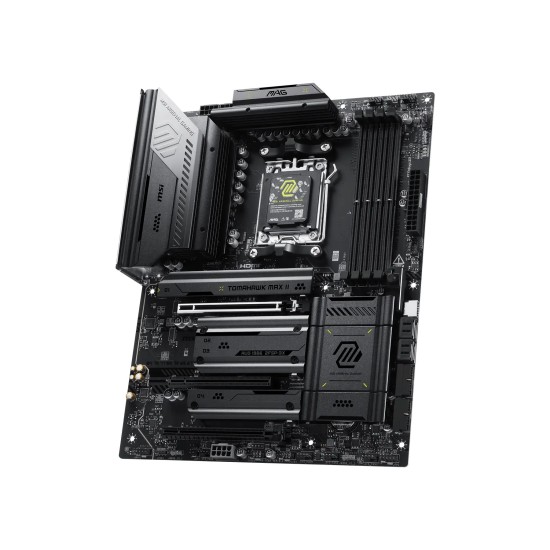

The MSI MAG B850 TOMAHAWK MAX WIFI II is an ATX motherboard for AMD Ryzen 9000/8000/7000 Series processors on Socket AM5. Built on the AMD B850 chipset, it brings a PCIe 5.0 x16 slot, two PCIe 5.0 M.2 slots, Realtek ALC4080 audio, 5G LAN and Wi-Fi 7 to mainstream gaming builds.
Availability: Upcoming at UCC. Contact us for pre-order and launch pricing.
| Motherboard Specification | |
| Chipset | AMD B850 |
| Socket | AM5 |
| Form Factor | ATX | 243.84mmx304.8mm |
| Audio | Realtek ALC4080 Codec | 7.1-Channel USB High Performance Audio | Supports up to 32-bit/384kHz playback on front panel | Supports S/PDIF output |
| Memory Specification | |
| Memory Capacity | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | Supports AMD POR Speed and JEDEC Speed | Supports Memory Overclocking and AMD EXPO™ | Supports Dual-Channel mode | Supports Non-ECC, Un-buffered memory | Supports CUDIMM, Clock Driver bypass mode only |
| Network & Wireless | |
| Wi-Fi | Wi-Fi 7 Solution | The Wireless module is pre-installed in the M.2 (Key-E) slot | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| LAN | Realtek 8126VB 5G LAN |
| Bluetooth | Supports Bluetooth 5.4, MLO, 4KQAM |
| Supports | |
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Connectors | |
| USB | 4x USB 2.0 (Rear) | 4x USB 2.0 (Front) | 1x USB 5Gbps Type A (Rear) | 4x USB 5Gbps Type A (Front) | 2x USB 10Gbps Type A (Rear) | 3x USB 10Gbps Type C (Rear) | 1x USB 20Gbps Type C (Front) |
| HDMI | 1x HDMI™ | Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz |
| Ports & Slots | |
| PCI-E | 3x PCI-E x16 slot | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 4x M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices | M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices | M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | 4x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) | 2x Power Connector(CPU_PWR) | 1x Power Connector(PCIE_PWR 8pin) | 1x CPU Fan | 1x Combo Fan (Pump_Sys Fan) | 6x System Fan | 1x EZ Conn-header (JAF_2) | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 3x Addressable V2 RGB LED connector (JARGB_V2) | 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) | 2x Direct OC Jumper (JBCLK) | 4x USB 2.0 ports | 4x USB 5Gbps Type A ports | 1x USB 20Gbps Type C ports |
| Warranty Information | |
| Warranty | 3 Years |
