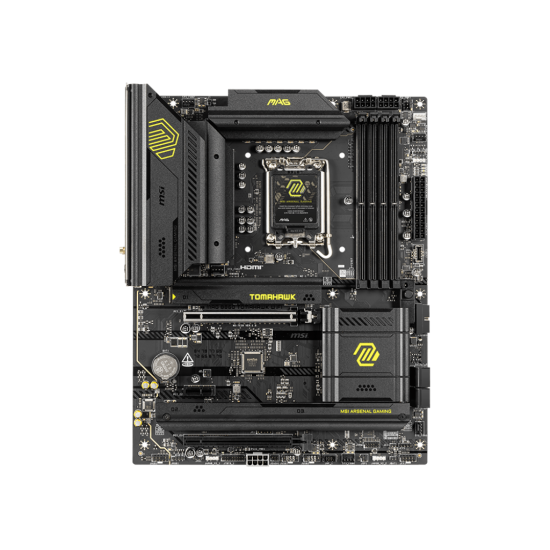

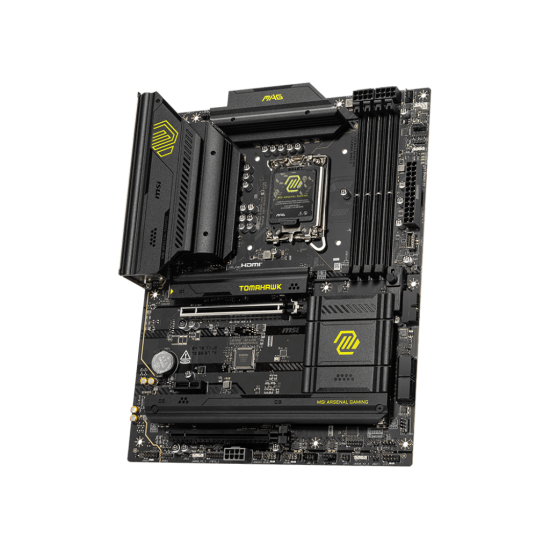

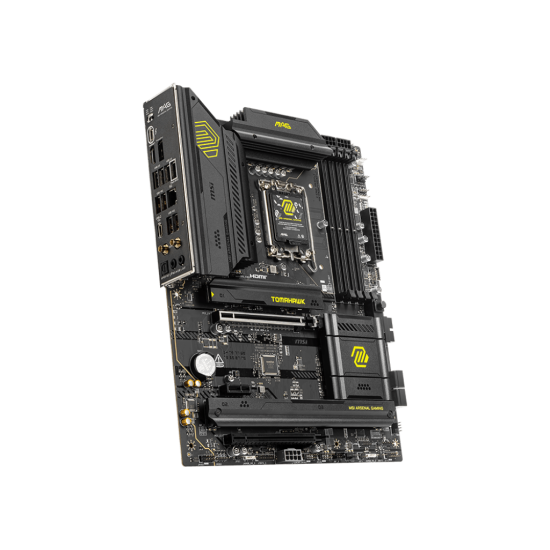

MSI MAG B860 TOMAHAWK Wi-Fi LGA1851 ATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: MAG B860 TOMAHAWK WIFI
- SKU: MAG B860 TOMAHAWK WIFI
৳33,900
EMI starts at ৳11,649/month. View all 27 banks EMI plans >
Key Features:
- Supports Intel Core Ultra Processors (Series 2) LGA 1851
- Chipset: Intel B860
- Form Factor: ATX
- Wi-Fi: Intel Killer BE1750x W
Product Details
MSI MAG B860 TOMAHAWK Wi-Fi LGA1851 ATX Motherboard
The MSI MAG B860 TOMAHAWK WIFI is built for gamers and creators who demand stability, speed, and next-gen technology. Designed to support the latest Intel® Core™ Ultra Processors (Series 2) on the LGA 1851 socket, this motherboard provides a rock-solid foundation for high-performance PC builds. Featuring cutting-edge Wi-Fi 7, Thunderbolt 4, and PCIe 5.0 support, the TOMAHAWK continues its legacy of delivering premium features in a rugged, "military-inspired" design.
Key Features:
- Next-Gen CPU Support: Optimized for Intel® Core™ Ultra Processors (Series 2) using the new LGA 1851 socket.
- Extreme DDR5 Performance: 4x DDR5 DIMM slots supporting dual-channel memory up to 9200+ MT/s (OC), with a maximum capacity of 256GB.
- Ultra-Fast Connectivity: Equipped with Intel® Killer™ Wi-Fi 7 (up to 5.8Gbps) and 5G LAN for lag-free gaming and lightning-fast file transfers.
- Thunderbolt 4 Onboard: Includes a rear Thunderbolt 4 port (40Gbps) for high-speed data, 8K display support, and daisy-chaining capabilities.
- Advanced Thermal Solution: Features an extended heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr to keep your high-performance components cool under heavy load.
- Lightning Gen 5 Support: Experience the full potential of next-gen GPUs and SSDs with a PCIe 5.0 x16 slot and a Gen5 x4 M.2 slot.
- EZ DIY Features: Simplify your building process with the EZ PCIe Release, EZ M.2 Shield Frozr II (screwless), and EZ Antenna for effortless setup.
Specification
| Storage Specification | |
| Storage | 3x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices<br> 4x SATA 6G |
| Motherboard Specification | |
| Chipset | INTEL B860 |
| Socket | LGA 1851 |
| Form Factor | ATX |
| Audio | Realtek ALC897 Codec<br> 7.1-Channel High Definition Audio<br> Supports S/PDIF output |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB<br> Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s<br> Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 9200+ MT/s<br> • 1DPC 2R Max speed up to 7200+ MT/s<br> • 2DPC 1R Max speed up to 6400+ MT/s<br> • 2DPC 2R Max speed up to 5600+ MT/s<br> |
| Network & Wireless | |
| Wi-Fi | Intel® Killer BE1750x Wi-Fi 7<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| LAN | Intel® Killer E5000 5Gbps LAN |
| Bluetooth | Supports Bluetooth 5.4**, MLO, 4KQAM |
| Supports | |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) <br> LGA 1851 |
| Connectors | |

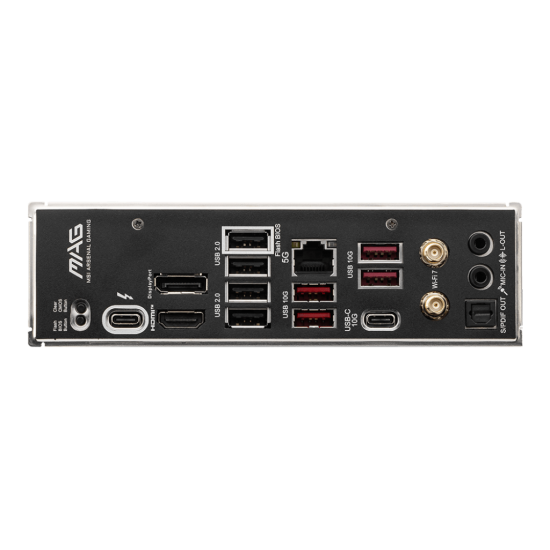

| USB | 4x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 2x USB 5Gbps Type A (Front)<br> 4x USB 10Gbps Type A (Rear)<br> 1x USB 10Gbps Type C (Rear)<br> 1x USB 10Gbps Type C (Front)<br> 1x USB 40Gbps Type C (Rear) |
| Display Port | 1x DisplayPort<br> Support DisplayPort 1.4<br> Maximum Resolution of 4K 60Hz |
| HDMI | 1x HDMI<br> Support HDMI 2.1 with FRL<br> Maximum resolution of 8K 60Hz |
| Ports & Slots | |
| Slots | 2x PCI-E x16 slot<br> 1x PCI-E x1 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x Power Connector(PCIE_PWR 8pin)<br> 1x CPU Fan<br> 1x Combo Fan (Pump_Sys Fan)<br> 5x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Tuning Controller connector(JDASH)<br> 3x Addressable V2 RGB LED connector (JARGB_V2)<br> 2x RGB LED connector(JRGB)<br> 1x TPM pin header(Support TPM 2.0)<br> 4x USB 2.0 ports<br> 2x USB 5Gbps Type A ports<br> 1x USB 10Gbps Type C ports |
| Warranty Information | |
| Warranty | 3 Years |
