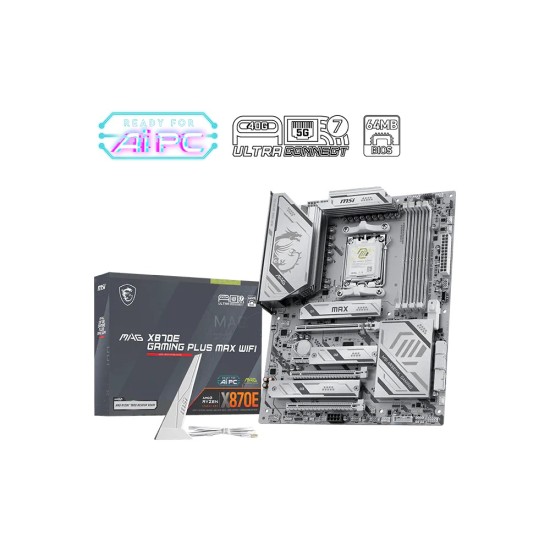

MSI MAG X870E GAMING PLUS MAX WIFI AM5 DDR5 ATX Motherboard

MSI MAG X870E GAMING PLUS MAX WIFI AM5 DDR5 ATX Motherboard
MSI MAG X870E GAMING PLUS MAX WIFI AM5 DDR5 ATX Motherboard
  • Stock: In Stock
  • Brand: MSI
  • Model: MAG X870E GAMING PLUS MAX WIFI
  • SKU: MAG X870E GAMING PLUS MAX WIFI
Based on 0 reviews. - Write a review
৳49,500
EMI starts at ৳1,708/month. View all 26 banks EMI plans >
Key Features:
  • Supports AMD Ryzen 9000/8000/7000 Series, Socket AM5
  • AMD X870E chipset, ATX form factor
  • 4x DDR5 slots, up to 256GB, DDR5 8200+ MT/s (OC)
  • 3x M.2 (1x PCIe 5.0 x4) + 4x SATA 6G
  • 1x USB 40Gbps Type-C (USB4)
  • Realtek 5G LAN, Wi-Fi 7 & Bluetooth 5.4
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Details

MSI MAG X870E GAMING PLUS MAX WIFI AM5 DDR5 ATX Motherboard

The MSI MAG X870E GAMING PLUS MAX WIFI is an ATX motherboard for AMD Ryzen 9000/8000/7000 Series processors on Socket AM5. It offers the AMD X870E chipset, a PCIe 5.0 x16 slot, a PCIe 5.0 M.2 slot, a USB 40Gbps Type-C port, 5G LAN and Wi-Fi 7 for a stable, DIY-friendly gaming build.

Key Features

  • Supports AMD Ryzen 9000/8000/7000 Series, Socket AM5
  • AMD X870E chipset, ATX form factor
  • 4x DDR5 slots, up to 256GB, DDR5 8200+ MT/s (OC)
  • 3x M.2 (1x PCIe 5.0 x4) + 4x SATA 6G
  • 1x USB 40Gbps Type-C (USB4)
  • Realtek 5G LAN, Wi-Fi 7 & Bluetooth 5.4

Availability: Upcoming at UCC. Contact us for pre-order and launch pricing.

Specification
Motherboard Specification
Chipset AMD X870E
Socket AM5
Form Factor ATX | 243.84mmx304.8mm
Audio Realtek ALC897 | 7.1-Channel High Definition Audio
Memory Specification
Memory Capacity 4x DDR5 UDIMM, Maximum Memory Capacity 256GB | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | Supports AMD POR Speed and JEDEC Speed | Supports Memory Overclocking and AMD EXPO™ | Supports Dual-Channel mode | Supports Non-ECC, Un-buffered memory | Supports CUDIMM, Clock Driver bypass mode only
Network & Wireless
Wi-Fi Wi-Fi 7 | The Wireless module is pre-installed in the M.2 (Key-E) slot | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
LAN 1x Realtek 8126 5G LAN
Bluetooth Supports Bluetooth 5.4, MLO, 4KQAM
Supports
Supported CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Connectors
USB 4x USB 2.0 (Rear) | 6x USB 2.0 (Front) | 2x USB 5Gbps Type A (Rear) | 4x USB 5Gbps Type A (Front) | 2x USB 10Gbps Type A (Rear) | 1x USB 10Gbps Type C (Front) | 1x USB 20Gbps Type C (Rear) | 1x USB 40Gbps Type C (Rear)
Display Port 1x Type-C DisplayPort | USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
HDMI 1x HDMI™ | Support HDMI™ 2.1 TMDS, maximum resolution of 4K 60Hz
Ports & Slots
PCI-E 3x PCI-E x16 slot | 1x PCI-E x1 slot | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 3x M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices | 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) | 2x Power Connector(CPU_PWR) | 1x Power Connector(PCIE_PWR 8pin) | 1x CPU Fan | 1x Combo Fan (Pump_Sys Fan) | 6x System Fan | 1x EZ Conn-header (JAF_1) | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 1x Tuning Controller connector(JDASH) | 3x Addressable V2 RGB LED connector (JARGB_V2) | 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) | 2x Direct OC Jumper (JBCLK) | 6x USB 2.0 ports | 4x USB 5Gbps Type A ports | 1x USB 10Gbps Type C ports
Warranty Information
Warranty 3 Years
