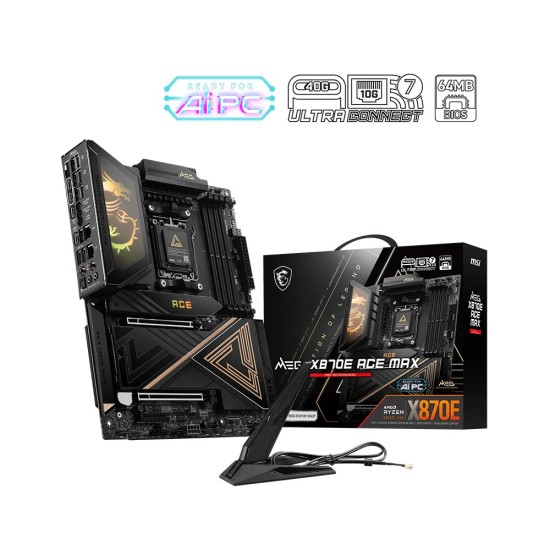

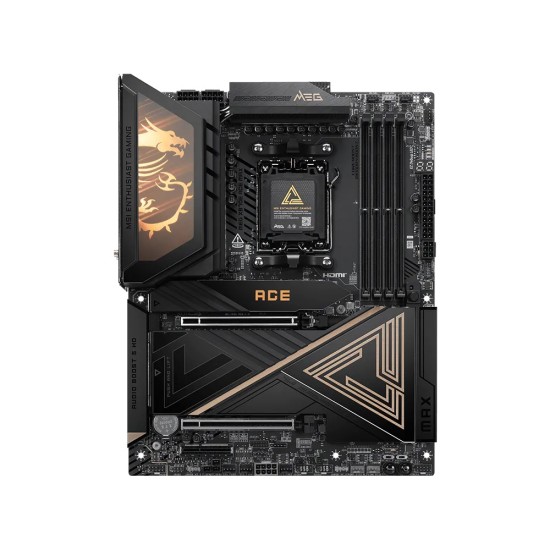

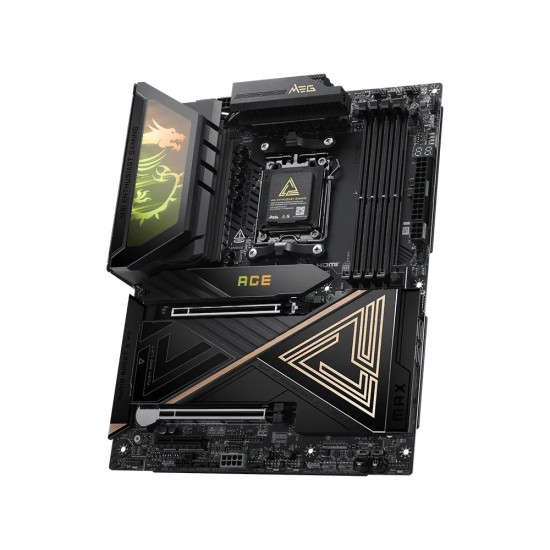

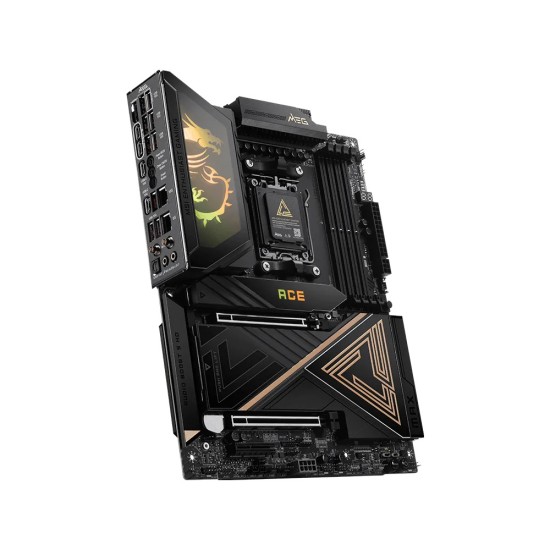

MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard

MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard
  • Stock: In Stock
  • Brand: MSI
  • Model: MEG X870E ACE MAX
  • SKU: MEG X870E ACE MAX
Based on 0 reviews. - Write a review
৳109,900
EMI starts at ৳3,792/month. View all 26 banks EMI plans >
Key Features:
  • Supports AMD Ryzen 9000/8000/7000 Series, Socket AM5
  • AMD X870E chipset, ATX form factor
  • 4x DDR5 slots, up to 256GB, DDR5 9000 MT/s (OC)
  • 5x M.2 (2x PCIe 5.0 x4) + 4x SATA 6G
  • 2x USB 40Gbps Type-C (USB4)
  • 10G + 5G dual LAN, Wi-Fi 7 & Bluetooth 5.4
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Details

MSI MEG X870E ACE MAX AM5 DDR5 ATX Motherboard

The MSI MEG X870E ACE MAX is a flagship ATX motherboard for AMD Ryzen 9000/8000/7000 Series processors on Socket AM5. It features the AMD X870E chipset, PCIe 5.0 x16 slots with x8/x8 support, five M.2 slots (two PCIe 5.0), dual USB 40Gbps Type-C, 10G + 5G dual LAN, Wi-Fi 7 and an ESS DAC for enthusiast builds.

Key Features

  • Supports AMD Ryzen 9000/8000/7000 Series, Socket AM5
  • AMD X870E chipset, ATX form factor
  • 4x DDR5 slots, up to 256GB, DDR5 9000 MT/s (OC)
  • 5x M.2 (2x PCIe 5.0 x4) + 4x SATA 6G
  • 2x USB 40Gbps Type-C (USB4)
  • 10G + 5G dual LAN, Wi-Fi 7 & Bluetooth 5.4

Availability: Upcoming at UCC. Contact us for pre-order and launch pricing.

Specification
Motherboard Specification
Chipset AMD X870E
Socket AM5
Form Factor ATX | 243.84mmx304.8mm
Audio Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA | 7.1-Channel USB High-Performance Audio | Supports S/PDIF output | Supports up to 32-Bit/384 kHz playback on front panel
Memory Specification
Memory Capacity 4x DDR5 UDIMM, Maximum Memory Capacity 256GB | Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | Supports AMD POR Speed and JEDEC Speed | Supports Memory Overclocking and AMD EXPOâ„¢ | Supports Dual-Channel mode | Supports Non-ECC, Un-buffered memory | Supports CUDIMM, Clock Driver bypass mode only
Network & Wireless
Wi-Fi Wi-Fi 7 Solution | The Wireless module is pre-installed in the M.2 (Key-E) slot | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
LAN 1x Marvell AQC113CS 10Gbps LAN | 1x Realtek 8126 5Gbps LAN
Bluetooth Supports Bluetooth 5.4, MLO, 4KQAM
Supports
Supported CPU Supports AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors
Connectors
USB 4x USB 2.0 (Front) | 4x USB 5Gbps Type A (Front) | 9x USB 10Gbps Type A (Rear) | 2x USB 10Gbps Type C (Rear) | 1x USB 20Gbps Type C (Front) | 2x USB 40Gbps Type C (Rear)
Display Port 2x Type-C DisplayPort | USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz
HDMI 1x HDMIâ„¢ | Support HDMIâ„¢ 2.1 FRL, maximum resolution of 8K 60Hz
Ports & Slots
PCI-E 2x PCI-E x16 slot | 1x PCI-E x4 slot | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) | PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
Storage 5x M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices | M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices | 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) | 2x Power Connector(CPU_PWR) | 1x Power Connector(PCIE_PWR 8pin) | 1x Front Type-C Quick Charge Connector(PD_PWR1) | 1x CPU Fan | 2x Combo Fan (Pump_Sys Fan) | 5x System Fan | 1x EZ Conn-header (JAF_2) | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Water Flow connector | 1x Front Audio (JAUD) | 2x Thermal Sensor connectors(T_SEN) | 1x Tuning Controller connector(JDASH) | 3x Addressable V2 RGB LED connector (JARGB_V2) | 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) | V-check point | 2x Direct OC Jumper (JBCLK) | 4x USB 2.0 ports | 4x USB 5Gbps Type A ports | 1x USB 20Gbps Type C ports
Warranty Information
Warranty 3 Years
