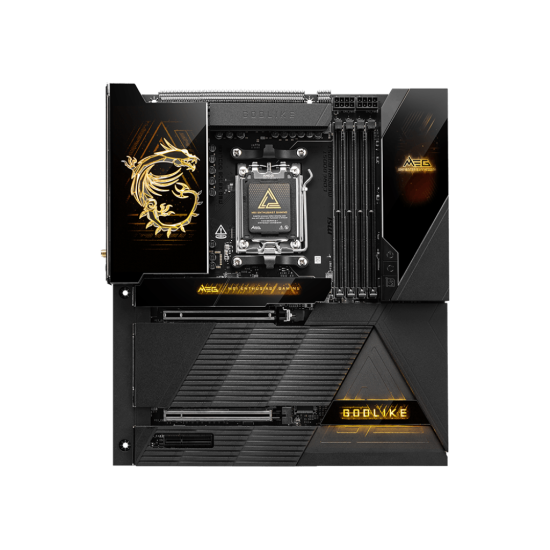

MSI MEG X870E Godlike AM5 DDR5 PCIe 5.0 E-ATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: MEG X870E Godlike
- SKU: MEG X870E Godlike
৳179,500
EMI starts at ৳61,682/month. View all 27 banks EMI plans >
Key Features:
- E-ATX Form Factor
- AMD X870E Chipset
- AM5 Socket
- 4 x Dual-Channel DDR5 Slots
- PCIe 5.0 x16 | PCIe 4.0 x4
- Wi-Fi 7 | Bluetooth 5.4 | 5 & 10GbE
- Realtek 7.1-Channel Audio with DAC
Product Details
MSI MEG X870E Godlike AM5 DDR5 PCIe 5.0 E-ATX Motherboard
Prepare your next build for maximum gaming and content creation performance with the MSI MEG X870E GODLIKE AM5 E-ATX Motherboard. Supporting AMD 7000, 8000, and 9000 series processors with the AM5 socket, this motherboard can be outfitted with overclocked components to handle demanding applications and AI-enhanced workloads.
Designed with EZ Link technology to streamline builds, you can install up two M.2 PCIe 5.0 and three PCIe 4.0 SSDs on the motherboard. Two more M.2 PCIe 5.0 SSDs may be added using the included M.2 XPANDER-Z Slider Gen 5 card. You can also install up to four SATA III drives to store your games library, applications, and important files. Four DDR5 DIMM slots are available for up to 256GB of memory, which may be overclocked for up to 9000 MT/s performance. With two PCIe 5.0 x16 slots and one PCIe 4.0 x4 slot, you can add multiple graphics cards and other compatible expansions.
The rear panel features two USB4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K display. There are also five USB-C and eight USB-A ports that work with 10 Gb/s devices. An internal header allows you to use a 20 Gb/s USB-C port on the front panel. Built-in Wi-Fi 7 (802.11be) support and both 5G and 10G compatible Ethernet ports provide you with high-speed connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 64-bit is required to take advantage of all the motherboard's features.
MSI GODLIKE Design
Dynamic Dashboard III
A built-in 3.99" color LCD screen allows you to monitor your hardware performance in real-time or display personalized graphics.
EZ Link
MSI's EZ Link design helps to simplify installation by consolidating most of the front panel, fan, and RGB headers into the EZ Bridge and EZ Control Hub. The EZ Bridge, which holds the LCD screen, magnetically attaches to the motherboard and attaches directly to the EZ Control hub with a flexible cable.
Ultra Performance
Power Solution
Unleash and sustain the maximum performance with a digital PWM IC design with a 24+2+1 Duet Rail Power System. By combining dual power connectors and 110A Smart Power Stage, the MEG X870E GODLIKE is ready for high-end processors and hardware.
Optimized PCB Design
The 10-layer PCB design features 2 ounces of copper and has been optimized for higher bandwidth and faster transfer speeds.
DDR5 Memory Support
High-performance DDR5 memory works with a dedicated SMT welding process and MSI Memory Boost technology to deliver exceptional performance.
Ultra Engine
Multiple CPU and memory overlocking features included in the Click BIOS X tool allow you to quickly and easily fine-tune performance.
Frozr Design
Maintain optimal temperatures with magnetic double-sided M.2 shield heat sinks, a metal backplate, aluminum cover, direct touch cross heatpipes, and more.
Wi-Fi 7
Wi-Fi 7 (802.11be) introduces higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax), with maximum speeds of up to 5.8 Gb/s.
DIY Friendly
PCIe 5.0
Doubling the speed of the previous generation, the PCIe 5.0 x16 interface can reach 128 GB/s.
SMT PCIe Slots
The advanced SMT (Surface Mount Technology) PCIe slot diminishes interference and electrical noise to fully support the PCI-E 5.0 signal. They are reinforced with Steel Armor II technology to support heavy graphics cards.
Steel Armor II
Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.

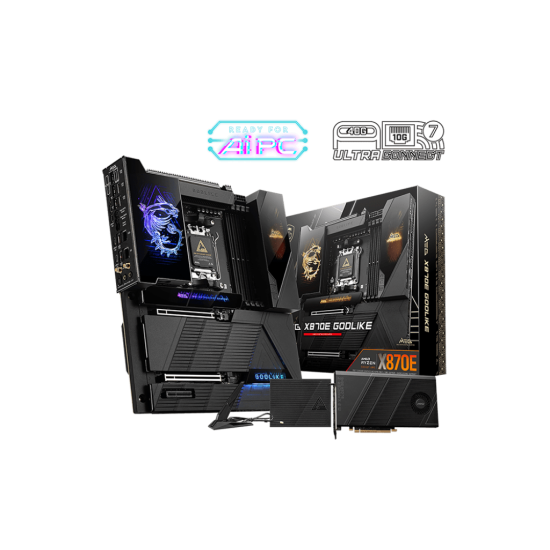

M.2 XPANDER-Z Slider Gen 5
Add two additional M.2 PCIe 5.0 SSDs to your system using the included expansion card, which features an EZ slide design for simplified installation. Dual 70mm double-ball bearing fans help to maintain optimal temperatures.
EZ PCIe Release
An easy-to-access physical button release mechanism helps to remove any PCIe card with a single tap, making it easier to upgrade to a new GPU or other compatible device.
EZ M.2 Clip II
MSI's EZ M.2 CLIP II makes SSD installation seamless. Insert the SSD into the M.2 slot and press it down to lock it in place with the clip. Flicking the clip outward lets you remove the SSD. Use the EZ M.2 Clip II remover tool to detach or reposition the clip on the motherboard.
Flash BIOS
Flash the BIOS with only a connected power supply and a flash drive. No CPU or memory required.
Clear CMOS
Restore the BIOS to its default settings with the push of a button.
Specification
| Motherboard Specification | |
| Chipset | AMD X870E |
| Form Factor | E-ATX |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Socket | Socket AM5 |
| Storage Specification | |
| Storage | 7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. |
| Memory Specification | |
| Memory Type | DDR5 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Network & Wireless | |
| Wi-Fi | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| LAN | 1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN |
| Supports | |
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Connectors | |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) * USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4. ** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors. |
| Display Port | 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Ports & Slots | |
| Slots | 7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. * Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card. ** Please refer to the manual for M.2 SSD heatsink restrictions. 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details. |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports |
| PCI-E | 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details. |
| Warranty Information | |
| Warranty | 3 years |
