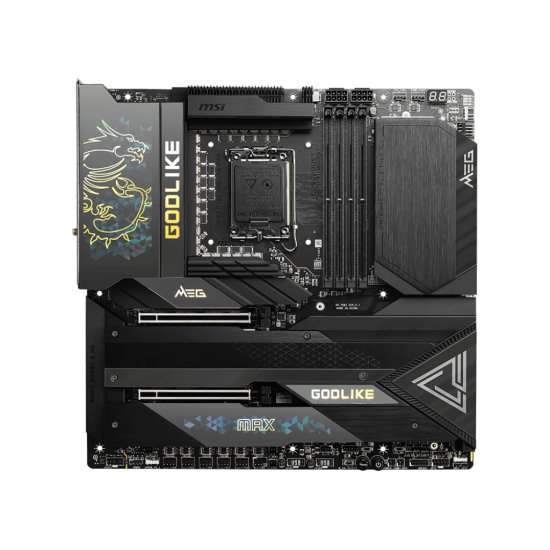

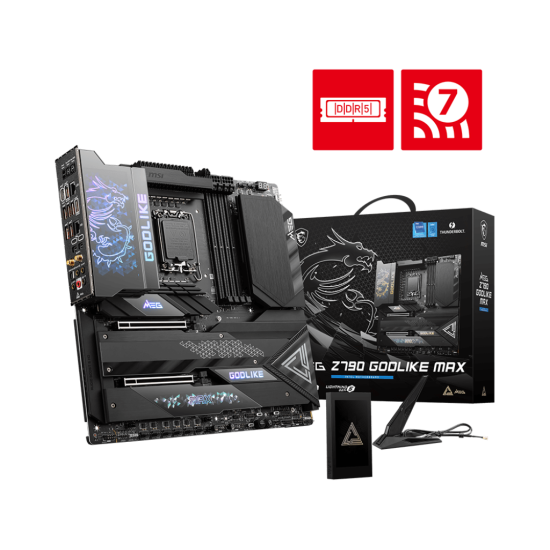

MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard
- Stock: Out Of Stock
- Brand: MSI
- Model: MEG Z790 GODLIKE MAX
- SKU: MEG Z790 GODLIKE MAX
৳159,900
EMI starts at ৳54,947/month. View all 27 banks EMI plans >
Key Features:
- SUPPORTS INTEL 14TH/13th/12th GEN PROCESSORS
- INTEL Z790 CHIPSET
- LGA 1700 SOCKET
- DDR5 7800+MHz (OC)
- LATEST PCIE 5.0 M.2 SLOT
- WI-FI 7 SOLUTION
- AUDIO BOOST 5
Product Details
MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard
MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard. This motherboard is a high-performance model that supports the latest Intel 14th/13th/12th Gen processors and up to 192GB of DDR5 memory. It features a range of high-quality audio and networking components, including a Realtek ALC4082 Codec and an ESS ES9280AQ Combo DAC/HPA. The motherboard also supports up to 32 Bit/384 kHz playback on the front panel and has a range of USB ports, including USB 3.2 Gen2 Type-C ports. The MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard also features a range of connectors and slots, including DisplayPort, USB-C, and Thunderbolt 4 ports. It has a range of internal I/O ports, including power connectors, front panel connectors, and fan connectors. The motherboard also has a range of LED lights and a TPM pin header for security. It is a powerful and versatile motherboard that can support the latest hardware and software, and it is a great choice for anyone looking to build a high-performance PC.
MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard
- Fast processing: The motherboard supports the latest Intel processors for fast and efficient processing.
- High-quality audio: The motherboard features high-quality audio components for clear and detailed sound.
- Convenient connectivity: The motherboard has a range of USB ports and Thunderbolt 4 ports for convenient connectivity.
- Display output: The motherboard has a DisplayPort for high-quality display output.
- Customizable LED lights: The motherboard has a range of LED lights for a stylish and customizable look.
- Security: The motherboard has a TPM pin header for security.
- Expandability: The motherboard has a range of expansion slots for future upgrades.
- Compatibility: The motherboard is compatible with a range of operating systems. These are just a few of the short features of the MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard.
Specification
| Motherboard Specification | |
| Chipset | INTEL Z790 |
| Socket | LGA 1700 |
| Form Factor | E-ATX |
| Audio | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA<br> 7.1-Channel USB High-Performance Audio<br> Supports S/PDIF output<br> Supports up to 32-Bit/384 kHz playback on the front panel |
| Memory Specification | |
| Memory Type | 4x DDR5 UDIMM |
| Memory Capacity | Maximum Memory Capacity 192GB |
| Network & Wireless | |
| Wi-Fi | Wi-Fi 7<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| LAN | Marvell® AQC113CS-B1-C 10Gbps LAN<br> Intel® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz<br> Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 7800+ MHz<br> • 1DPC 2R Max speed up to 6800+ MHz<br> • 2DPC 1R Max speed up to 6400+ MHz<br> • 2DPC 2R Max speed up to 6000+ MHz<br>Supports Intel® XMP3.0 OC<br> Supports Dual-Controller Dual-Channel mode<br> Supports non-ECC, un-buffered memory |
| Connectors | |

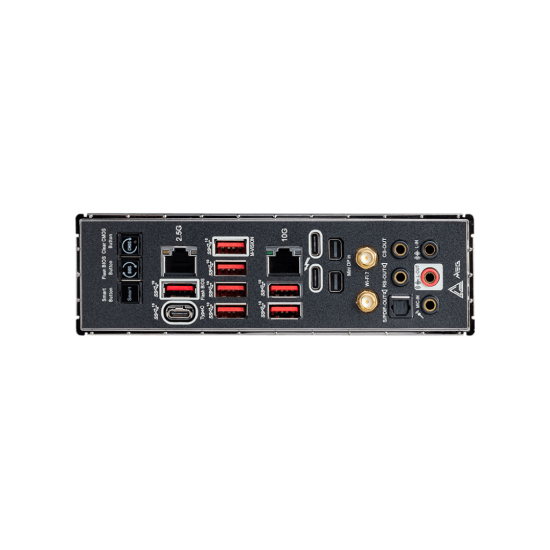

| USB | 4x USB 2.0 (Front)<br> 4x USB 3.2 Gen1 Type A (Front)<br> 7x USB 3.2 Gen2 Type A (Rear)<br> 1x USB 3.2 Gen2 Type C (Rear)<br> 2x USB 3.2 Gen2x2 Type C (Front) |
| Display Port | Thunderbolt chip JHL8540<br> 2x Thunderbolt4 (USB-C) ports Q’ty<br> Supports up to 40Gbps transfer rate with Thunderbolt devices<br> Supports up to 20Gbps transfer rate with USB4 devices<br> Supports up to 10Gbps transfer rate with USB 3.2 devices<br> Supports up to 5V/3A,15W power charging<br> Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices<br> Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| Ports & Slots | |
| PCI-E | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) |
| Slots | 2x PCI-E x16 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x Front Type-C Quick Charge Connector(PD_PWR1)<br> 1x CPU Fan<br> 2x Pump Fan<br> 7x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Water Flow connector<br> 1x Slow Mode Booting Jumper(JSLOW)<br> 1x Front Audio (JAUD)<br> 2x Thermal Sensor connectors(T_SEN)<br> 1x Tuning Controller connector(JDASH)<br> 3x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 1x TPM pin header(Support TPM 2.0)<br> 4x USB 2.0 ports<br> 4x USB 3.2 Gen1 Type A ports<br> 2x USB 3.2 Gen 2x2 Type C ports<br> V-check point<br> 1x ARGB+FAN Header (JAF_1) |
| Warranty Information | |
| Warranty | 3 Years |
