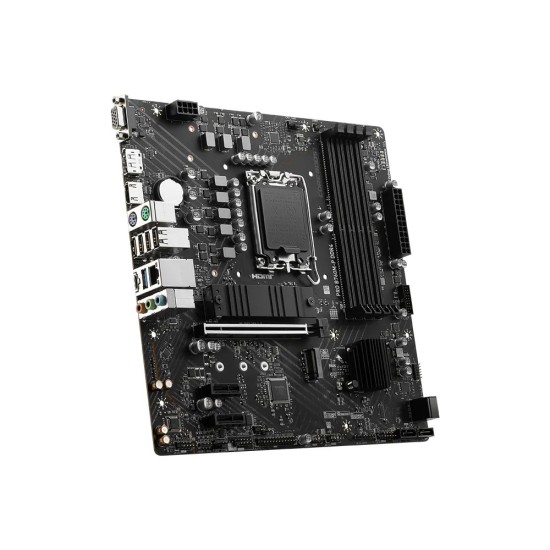

MSI PRO B760M-P DDR4 ATX Motherboard
- Stock: Out Of Stock
- Brand: MSI
- Model: PRO B760-P DDR4
- SKU: PRO B760-P DDR4
৳16,200
EMI starts at ৳5,567/month. View all 27 banks EMI plans >
Key Features:
- Supports 12th/ 13th Gen Intel Processors
- Supports DDR4 Memory, up to 5333+(OC) MHz
- 12+1+1 Duet Rail Power System
- PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution
Product Details
MSI PRO B760M-P DDR4 ATX Motherboard
MSI PRO B760M-P WIFI DDR4 Motherboard supports 12th/ 13th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and two M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The four SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. Resource-demanding peripherals such as storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards.
Specification
| Motherboard Specification | |
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | ATX<br> 243.84mmx304.8mm |
| Audio | Realtek® ALC897 Codec<br> 7.1-Channel USB High Performance Audio<br> Supports S/PDIF output |
| Memory Specification | |
| Memory Type | DDR4 |
| Memory Capacity | 128GB |
| Network & Wireless | |
| LAN | Realtek® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Supported Memory | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)<br>Max. overclocking frequency:<br> 1DPC 1R Max speed up to 5333+ MHz<br> 1DPC 2R Max speed up to 4800+ MHz<br> 2DPC 1R Max speed up to 4400+ MHz<br> 2DPC 2R Max speed up to 4000+ MHz<br> Supports Dual-Channel mode<br> Supports non-ECC, un-buffered memory<br> Supports Intel® Extreme Memory Profile |
| Connectors | |

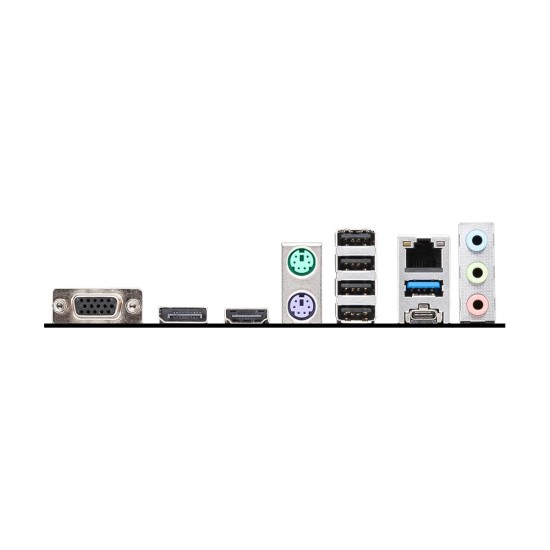

| USB | 4x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 2x USB 3.2 Gen1 Type A (Front)<br> 4x USB 3.2 Gen2 Type A (Rear)<br> 1x USB 3.2 Gen2 Type C (Front)<br> 1x USB 3.2 Gen2x2 Type C (Rear) |
| Display Port | Support DP 1.4, maximum resolution of 8K 60Hz<br> 1x DisplayPort |
| HDMI | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz<br> 1x HDMI |
| Ports & Slots | |
| PCI-E | 2x PCI-E x16 slot<br> Supports x16/x4<br> 1x PCI-E x1 slot |
| Slots | 2x PCI-E x16 slot<br> Supports x16/x4<br> 1x PCI-E x1 slot<br> PCI_E1 PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)<br> PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x CPU Fan<br> 1x Pump Fan<br> 5x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x TBT connector (JTBT, supports RTD3)<br> 1x Tuning Controller connector(JDASH)<br> 2x Addressable V2 RGB LED connector (JARGB_V2)<br> 2x RGB LED connector(JRGB)<br> 1x TPM pin header(Support TPM 2.0)<br> 4x USB 2.0<br> 2x USB 3.2 Gen1 Type A<br> 1x USB 3.2 Gen2 Type C |
| Warranty Information | |
| Warranty | 3 Year |
