MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard

MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard
  • Stock: In Stock
  • Brand: MSI
  • Model: PRO B860M-B WIFI
  • SKU: PRO B860M-B WIFI
Based on 0 reviews. - Write a review
৳23,500
EMI starts at ৳811/month. View all 26 banks EMI plans >
Key Features:
  • Supports Intel Core Ultra Processors (Series 2), LGA 1851
  • Intel B860 chipset, Micro-ATX form factor
  • 2x DDR5 slots, up to 128GB, DDR5 9066+ MT/s (OC)
  • 2x M.2 (1x PCIe 5.0 x4) + 4x SATA 6G
  • PCIe 5.0 x16 slot
  • Realtek 5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Details

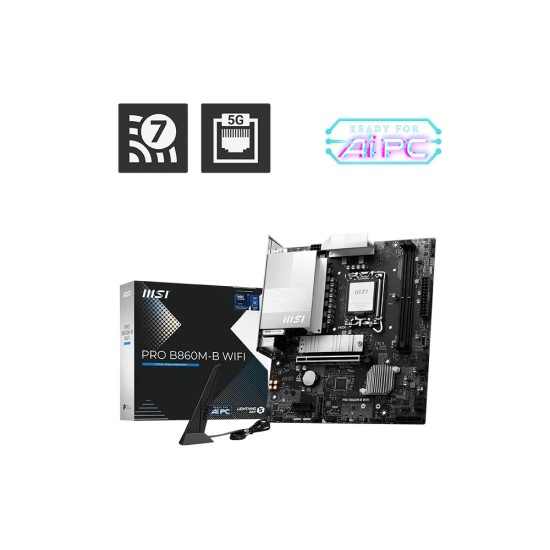

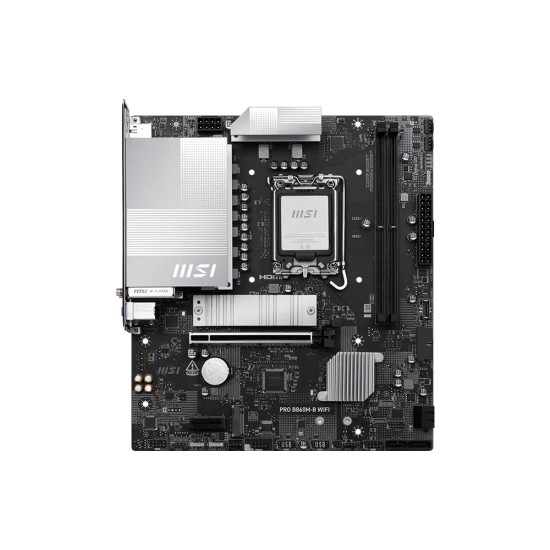

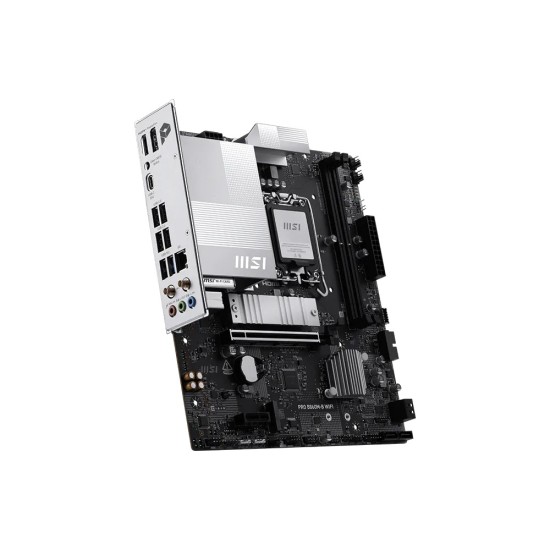

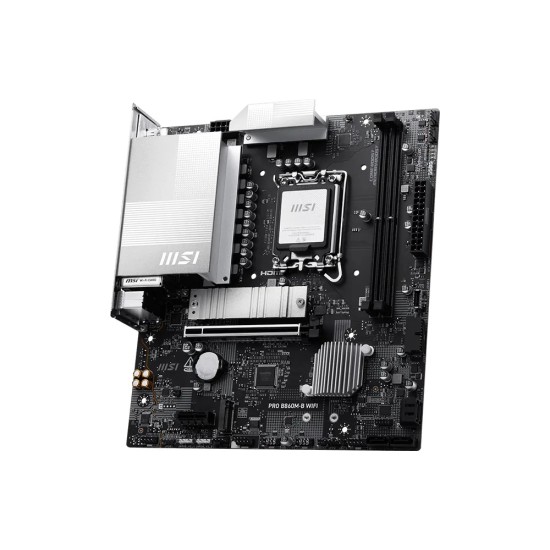

MSI PRO B860M-B WIFI LGA1851 Micro ATX Motherboard

The MSI PRO B860M-B WIFI is a compact Micro-ATX motherboard for Intel Core Ultra (Series 2) processors. With the Intel B860 chipset, two DDR5 slots supporting up to DDR5 9066+ MT/s (OC), a PCIe 5.0 x16 slot, a PCIe 5.0 M.2 slot, 5Gbps LAN and Wi-Fi 7, it is a strong value base for office and mainstream builds.

Key Features

  • Supports Intel Core Ultra Processors (Series 2), LGA 1851
  • Intel B860 chipset, Micro-ATX form factor
  • 2x DDR5 slots, up to 128GB, DDR5 9066+ MT/s (OC)
  • 2x M.2 (1x PCIe 5.0 x4) + 4x SATA 6G
  • PCIe 5.0 x16 slot
  • Realtek 5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4

Availability: Upcoming at UCC. Contact us for pre-order and launch pricing.

Specification
Motherboard Specification
Chipset INTEL B860
Socket LGA 1851
Form Factor Micro-ATX | 220mmx243.84mm
Audio Realtek ALC897 Codec | 7.1-Channel High Definition Audio
Memory Specification
Memory Capacity 2x DDR5 UDIMM, Maximum Memory Capacity 128GB | Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s | Supports Intel POR Speed and JEDEC Speed | Supports Memory Overclocking and Intel XMP 3.0 | Supports Dual-Controller Dual-Channel mode | Supports Non-ECC, Un-buffered memory | Supports CUDIMM
Network & Wireless
Wi-Fi Wi-Fi 7 | The Wireless module is pre-installed in the M.2 (Key-E) slot | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.9Gbps | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
LAN Realtek 8126 5Gbps LAN
Bluetooth Supports Bluetooth 5.4, MLO, 4KQAM
Supports
Supported CPU Supports Intel® Core™ Ultra Processors (Series 2)
Connectors
USB 4x USB 2.0 (Rear) | 4x USB 2.0 (Front) | 2x USB 5Gbps Type A (Rear) | 2x USB 5Gbps Type A (Front) | 1x USB 10Gbps Type C (Front) | 1x USB 20Gbps Type C (Rear)
Display Port 1x DisplayPort | Support DisplayPort 1.4, maximum resolution of 4K 60Hz
HDMI 1x HDMI™ | Support HDMI™ 2.1, maximum resolution of 4K 60Hz
Ports & Slots
PCI-E 1x PCI-E x16 slot | 1x PCI-E x1 slot | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage 2x M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) | 1x Power Connector(CPU_PWR) | 1x CPU Fan | 2x System Fan | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 1x Com Port (JCOM) | 1x Tuning Controller connector(JDASH) | 3x Addressable V2 RGB LED connector (JARGB_V2) | 1x RGB LED connector(JRGB) | 1x TPM pin header(Support TPM 2.0) | 4x USB 2.0 ports | 2x USB 5Gbps Type A ports | 1x USB 10Gbps Type C ports
Warranty Information
Warranty 3 Years
