MSI PRO B860M-P WIFI6E Micro-ATX Motherboard

MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
MSI PRO B860M-P WIFI6E Micro-ATX Motherboard
  • Stock: In Stock
  • Brand: MSI
  • Model: PRO B860M-P WIFI6E
  • SKU: PRO B860M-P WIFI6E
Based on 0 reviews. - Write a review
৳22,800
EMI starts at ৳787/month. View all 26 banks EMI plans >
Key Features:
  • Supports Intel Core Ultra Processors (Series 2) LGA 1851)
  • Up to DDR5 8800+ MT/s (OC)
  • Realtek 8125 2.5Gbps LAN
  • 7.1-Channel High Definition Audio
  • EZ M.2 Shield Frozr II
  • PCIe 5.0 x16
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Details

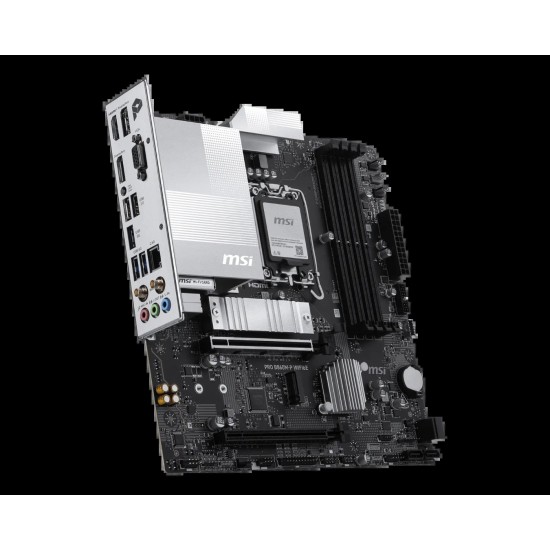

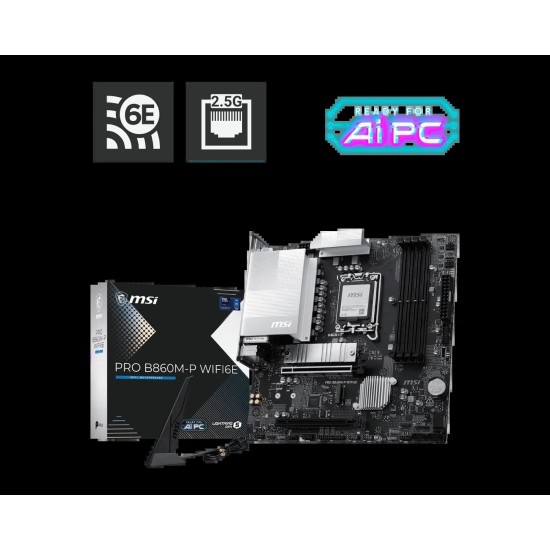

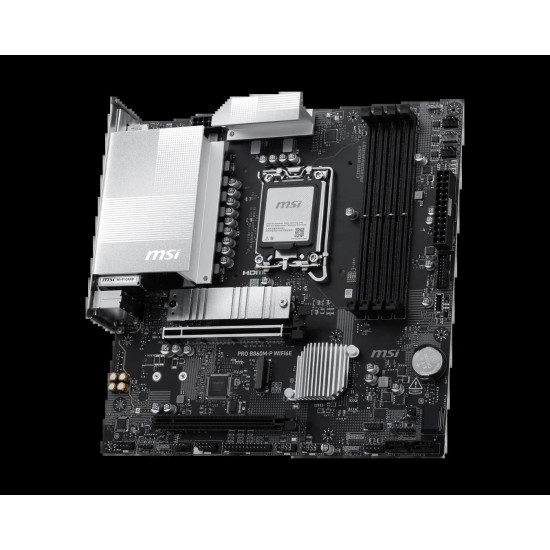

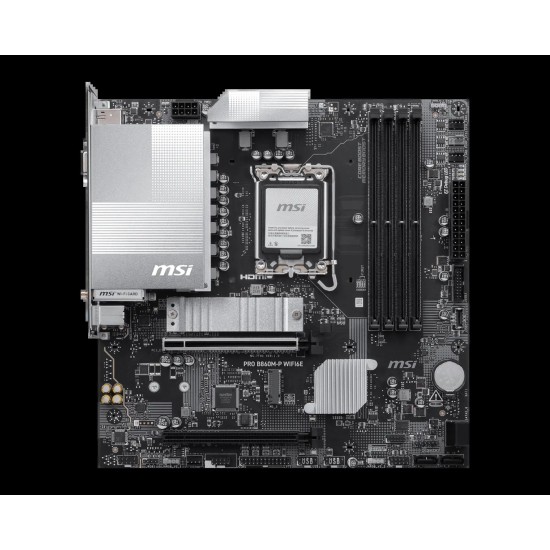

MSI PRO B860M-P WIFI6E Micro-ATX Motherboard

Engineered for professionals, business environments, and modern PC builders seeking value without sacrificing performance, the MSI PRO B860M-P WIFI6E delivers a compact yet feature-packed solution. Designed in a versatile Micro-ATX form factor with a clean silver-and-black aesthetic, this motherboard supports the Intel® Core™ Ultra processors on the LGA 1851 platform. It combines high-speed Wi-Fi 6E connectivity, DDR5 memory support, PCIe 5.0 speed, and advanced thermal design to maximize productivity, multitasking, and stability.

Key Features

  • Intel Core Ultra Processor Support: Built for the LGA 1851 socket, giving you access to next-gen computing power and AI-assisted workloads.
  • Direct 6+1+1+1 Power Delivery: Powered by a digital PWM controller, solid 8-pin CPU power connector, and Core Boost technology for reliable energy delivery under load.
  • Extreme DDR5 Performance: Features DDR5 support with MSI Memory Boost technology and XMP profiles, ensuring fast data bandwidth for demanding applications.
  • PCIe 5.0 High-Speed Support: Includes high-bandwidth expansion capabilities and fast M.2 NVMe storage slots to eliminate data bottlenecks.
  • Premium Thermal Architecture: Equipped with an Extended Heatsink design, 7W/mK MOSFET thermal pads, choke pads, and M.2 Shield Frozr to maintain low operating temperatures.
  • Modern Networking Suite: Offers high-speed Wi-Fi 6E with the tool-less EZ Antenna and onboard 2.5G LAN for rapid transfer speeds and reliable online connectivity.
  • DIY Friendly Design: Streamlines building and troubleshooting with a pre-installed I/O Shield, EZ PCIe Clip II for effortless GPU swapping, EZ Debug LEDs, and color-coded pin headers.
  • AI-Assisted Optimization: Works seamlessly with MSI Center software featuring Frozr AI Cooling, AI LAN Manager, and automated system tuning tools.
Specification
Motherboard Specification
Chipset INTEL B860
Socket LGA 1851
Form Factor Micro- ATX
Audio Realtek ALC897 Codec<br> 7.1-Channel High Definition Audio
Memory Specification
Memory Capacity 4x DDR5 UDIMM, Maximum Memory Capacity 256GB<br> Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 8800+ MT/s<br> • 1DPC 2R Max speed up to 7200+ MT/s<br> • 2DPC 1R Max speed up to 6400+ MT/s<br> • 2DPC 2R Max speed up to 5600+ MT/s
Network & Wireless
Wi-Fi Wi-Fi 6E<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax<br> Supports Bluetooth® 5.3**, FIPS, FISMA
LAN Realtek 8126 5Gbps LAN
Supports
Supported CPU Supports Intel Core Ultra Processors (Series 2)
Connectors

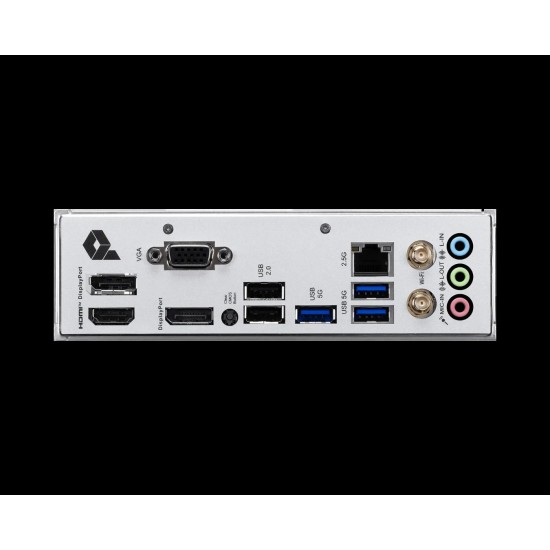

USB 2x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 3x USB 5Gbps Type A (Rear)<br> 2x USB 5Gbps Type A (Front)<br> 1x USB 5Gbps Type C (Front)
Display Port 2x DisplayPort<br> Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*
HDMI 1x HDMI<br> Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*
Ports & Slots
PCI-E 2x PCI-E x16 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Internal I/O Ports 1x Power Connector(ATX_PWR)<br> 1x Power Connector(CPU_PWR)<br> 1x CPU Fan<br> 1x Combo Fan (Pump_Sys Fan)<br> 2x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Printer Port (JLPT)<br> 1x Com Port (JCOM)<br> 3x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 1x TPM pin header(Support TPM 2.0)<br> 4x USB 2.0 ports<br> 2x USB 5Gbps Type A ports<br> 1x USB 5Gbps Type C ports
Warranty Information
Warranty 3 Years
