MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard

MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard
  • Stock: In Stock
  • Brand: MSI
  • Model: PRO X870E-S EVO WIFI
  • SKU: PRO X870E-S EVO WIFI
Based on 0 reviews. - Write a review
৳35,900
EMI starts at ৳1,239/month. View all 26 banks EMI plans >
Key Features:
  • Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series (AMD AM5 Socket)
  • Memory Support: 4x DDR5 DIMM slots, Dual-Channel (up to 8000+ MHz OC), AMD EXPO
  • Power Solution: 12+2
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Details

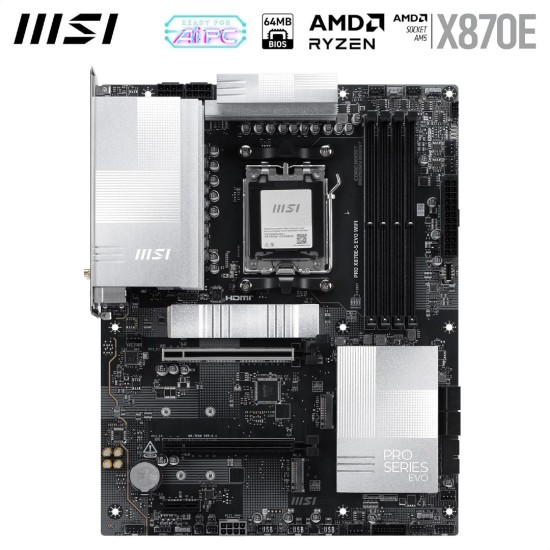

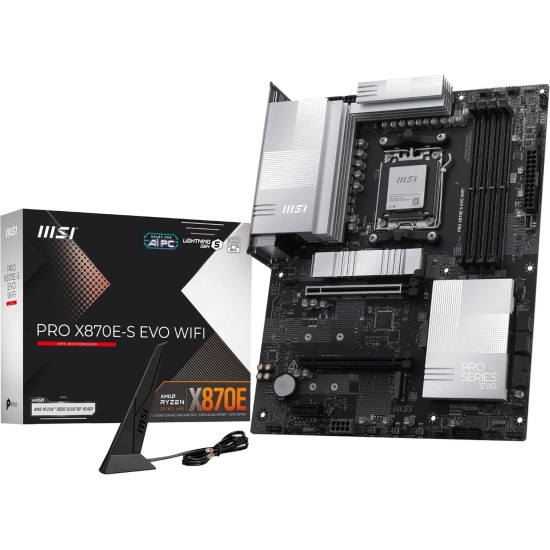

MSI PRO X870E-S EVO Wi-Fi AM5 ATX Motherboard

Designed for heavy workloads, high-end content creation, and next-generation gaming, the MSI PRO X870E-S EVO WIFI delivers extreme speed, robust stability, and futuristic connectivity. Powered by the high-tier AMD X870E chipset on the Socket AM5 platform, this motherboard is fully engineered for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Featuring ultra-fast Wi-Fi 7, 5G LAN, dual USB 40Gbps Type-C ports, and PCIe 5.0 speed, it gives power users a high-performance, future-proof foundation in a sleek silver-and-black aesthetic.

Key Features

  • AMD Socket AM5 Ready: Full support for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors.
  • 12+2+1 Duet Rail Power System (DRPS): Built with 60A Smart Power Stages (SPS), dual 8-pin CPU power connectors, and Supplemental PCIe Power for rock-solid VRM stability under heavy multi-threaded loads.
  • Ultra-Fast Connectivity: Features ultra-low-latency Wi-Fi 7 with EZ Antenna, onboard 5G LAN, and dual USB 40Gbps (Type-C) for massive data throughput.

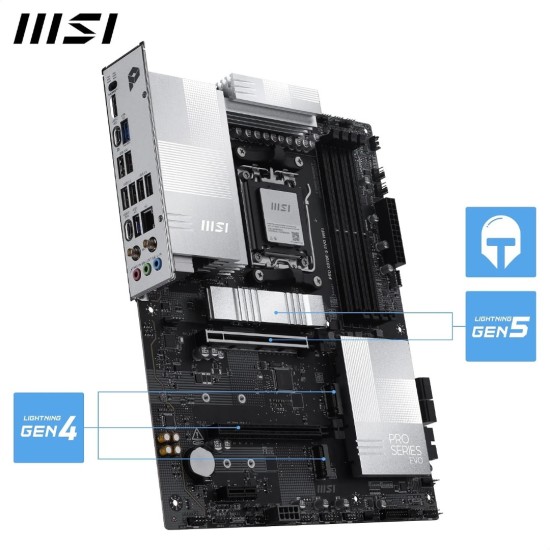

  • PCIe 5.0 & Lightning Storage: Equipped with PCIe 5.0 x16 graphics slot protection (PCIe Steel Armour) and ultra-fast PCIe 5.0 M.2 slots for ultra-speed NVMe SSDs.

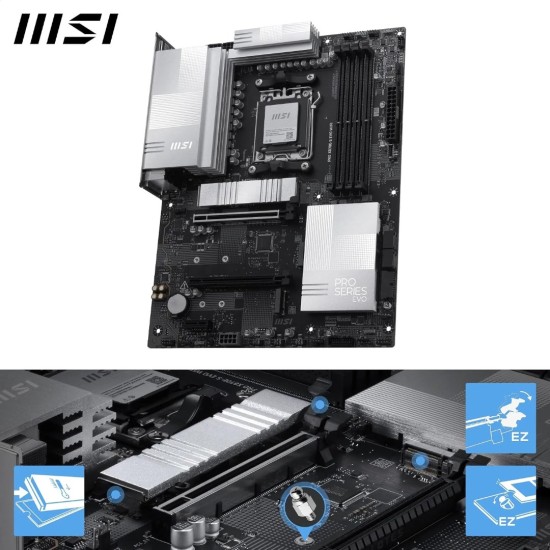

  • Revolutionary Tool-Free EZ DIY: Includes EZ M.2 Shield Frozr II, EZ M.2 Clip II, and EZ PCIe Clip II for toolless, one-finger installation and removal of SSDs and graphics cards.

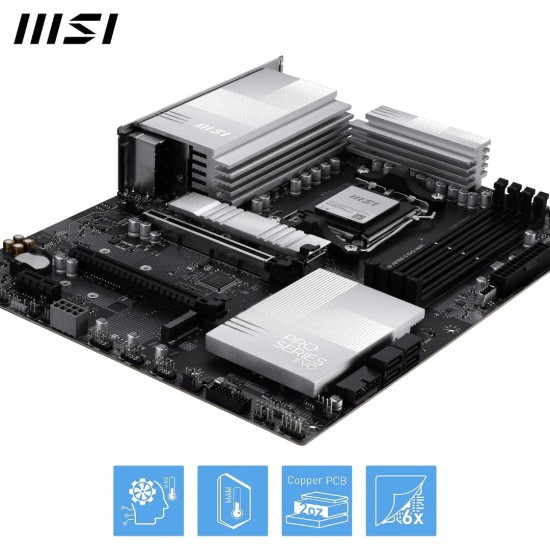

  • Next-Level Thermal Management: Extended Heatsink design, 7W/mK MOSFET thermal pads, dedicated pump-fan support, and heavy-plated VRM heatsinks ensure optimal cooling.
  • DDR5 Memory Optimizations: Supports high-speed DDR5 memory (8000+ MHz OC) with AMD EXPO / A-XMP profiles, High-Efficiency Mode, and Latency Killer technology for up to 12% lower memory latency.
  • AI PC Capabilities: Fully compatible with MSI Center AI tools, including AI Boost (NPU overclocking), Frozr AI Cooling, and AI LAN Manager.
Specification
Motherboard Specification
Chipset X870E
Socket AM5
Form Factor ATX
Audio Realtek ALC897<br> 7.1-Channel High Definition Audio
Memory Specification
Memory Type DDR5
Memory Capacity 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Supports
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors<br> Socket AM5
Supported Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB<br> Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s<br> Ryzen™ 9000 Series Processors max. overclocking frequency:<br> • 1DPC 1R Max speed up to 8200+ MT/s<br> • 1DPC 2R Max speed up to 6400+ MT/s<br> • 2DPC 1R Max speed up to 6400+ MT/s<br> • 2DPC 2R Max speed up to 6000+ MT/s
Connectors

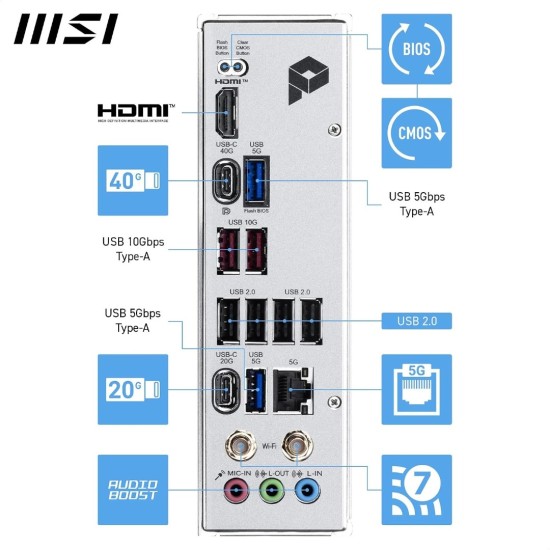

USB 4x USB 2.0 (Rear)<br> 6x USB 2.0 (Front)<br> 2x USB 5Gbps Type A (Rear)<br> 4x USB 5Gbps Type A (Front)<br> 2x USB 10Gbps Type A (Rear)<br> 1x USB 10Gbps Type C (Front)<br> 1x USB 20Gbps Type C (Rear)<br> 1x USB 40Gbps Type C (Rear)
LAN Realtek 8126VB 5G LAN
Display Port 1x Type-C DisplayPort<br> USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*
HDMI 1x HDMI<br> Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz*
Ports & Slots
PCI-E 2x PCI-E x16 slot<br> 1x PCI-E x1 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E1 slot<br> • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)<br> • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)<br> • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Internal I/O Ports 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x Power Connector(PCIE_PWR 8pin)<br> 1x CPU Fan<br> 1x Combo Fan (Pump_Sys Fan)<br> 6x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Tuning Controller connector(JDASH)<br> 3x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 1x TPM pin header(Support TPM 2.0)<br> 6x USB 2.0 ports<br> 4x USB 5Gbps Type A ports<br> 1x USB 10Gbps Type C ports
Warranty Information
Warranty 3 Years
