MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard

MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
Out Of Stock
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
  • Stock: Out Of Stock
  • Brand: MSI
  • Model: PRO Z890-S WIFI6E
  • SKU: PRO Z890-S WIFI6E
Based on 0 reviews. - Write a review
৳34,900
EMI starts at ৳1,204/month. View all 26 banks EMI plans >
Key Features:
  • Supported CPUs: Intel Core Ultra Processors
  • ATX Form Factor
  • 4x DDR5 DIMM slots, Dual-Channel (up to 8000+ MHz OC)
  • 1x PCIe 5.0 x16 slot, Additional PCIe expansion slots
  • 2.5G Ethernet + Intel Wi-Fi 6E & Bluetooth
  • 7.1-Channel Audio
Out Of Stock
Buy Now Ask Question
Add to Wish List Compare this Product
Product Details

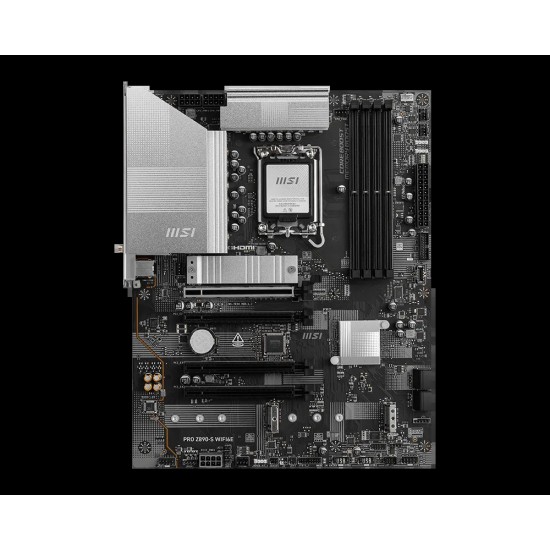

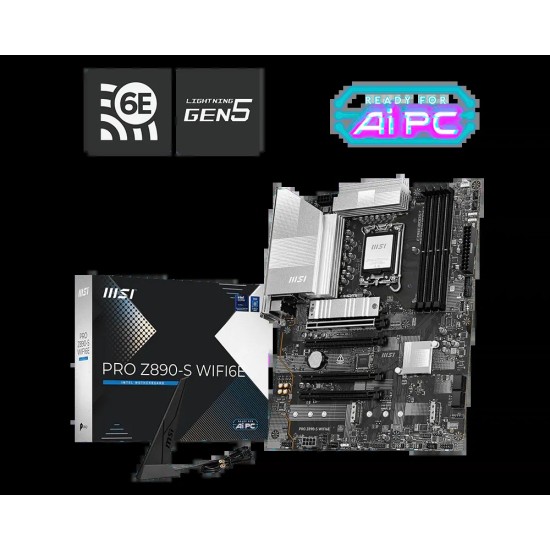

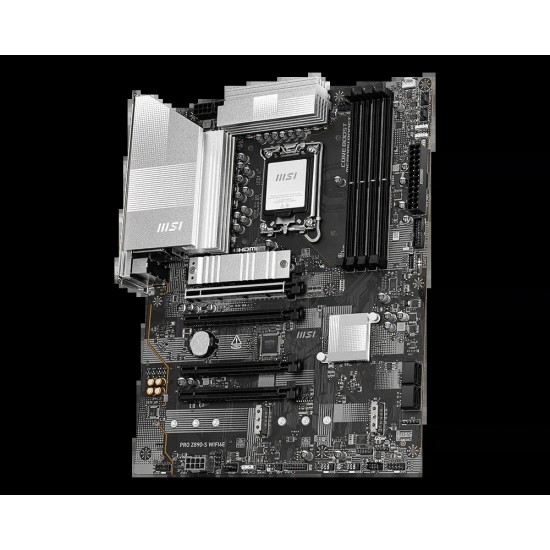

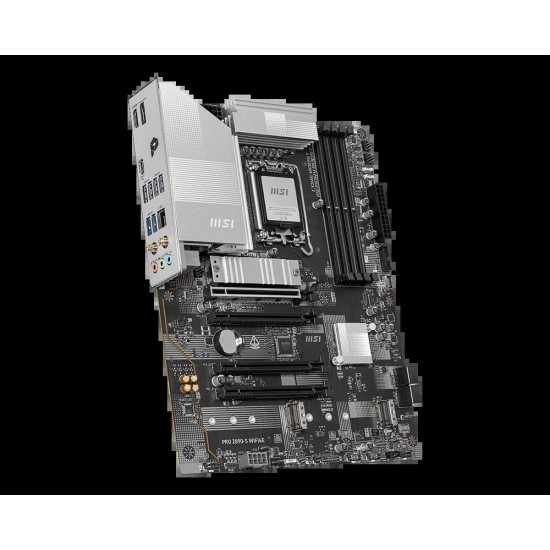

MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard

Designed for professionals, creators, and modern power users, the MSI PRO Z890-S WIFI6E motherboard delivers incredible stability, high-speed connectivity, and next-generation performance. Featuring a stylish silver-and-black aesthetic that fits both black and white PC builds, this motherboard is engineered to maximize the full potential of Intel® Core™ Ultra processors. Packed with advanced cooling solutions, high-speed Wi-Fi 6E, PCIe 5.0 expansion, and intuitive EZ DIY design features, the PRO Z890-S provides an efficient and reliable foundation for work and gaming setups alike.

Key Features

  • Intel Core Ultra Ready: Tailored for the latest Intel Core Ultra processors on the LGA 1851 socket.
  • Robust Power Delivery: Built with a 12+1+1+1 Duet Rail Power System (DRPS), dual 8-pin CPU power connectors, and Supplemental PCIe Power to sustain high performance under full workloads.
  • Lightning-Fast Memory Support: Supports high-speed DDR5 memory (up to 8000+ MHz OC) with MSI Memory Boost and XMP profiles for effortless overclocking.
  • PCIe 5.0 & Ultra-Fast Storage: Includes PCIe 5.0 M.2 slots for next-gen NVMe SSDs and a high-bandwidth PCIe 5.0 x16 slot for modern graphics cards.
  • Advanced Thermal Solution: Extended Heatsink design, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr keep VRMs and SSDs running cool under heavy loads.
  • High-Speed Networking: Equipped with Wi-Fi 6E featuring the tool-less EZ Antenna and an onboard 2.5G LAN for rapid data transfers and low-latency streaming.
  • EZ DIY Features: Includes EZ PCIe Clip II for effortless GPU removal, pre-installed I/O Shield, EZ Conn-Design (JAF_1 header), and onboard EZ Debug LEDs.
  • AI-Enhanced Optimizations: Integrates MSI AI Boost to optimize NPU performance, Frozr AI Cooling, and AI LAN Manager for dynamic system tuning.
Specification
Motherboard Specification
Chipset INTEL Z890
Socket LGA 1851
Form Factor ATX
Audio Realtek ALC897 Codec<br> 7.1-Channel High Definition Audio
Memory Specification
Memory Type DDR5
Network & Wireless
Wi-Fi Wi-Fi 6E module <br> The Wireless module is pre-installed in the M.2 (Key-E) slot <br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps <br> Supports 802.11 a/ b/ g/ n/ ac/ ax
LAN Realtek 8125D 2.5Gbps LAN
Bluetooth Supports Bluetooth® 5.3**, FIPS, FISMA <br> * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. <br>
Supports
Supported CPU Supports Intel Core Ultra Processors (Series 2) <br> LGA 1851
Supported Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB <br> Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s <br> Max. overclocking frequency: <br> • 1DPC 1R Max speed up to 8800+ MT/s <br> • 1DPC 2R Max speed up to 7200+ MT/s <br> • 2DPC 1R Max speed up to 6400+ MT/s <br> • 2DPC 2R Max speed up to 5600+ MT/s
Connectors

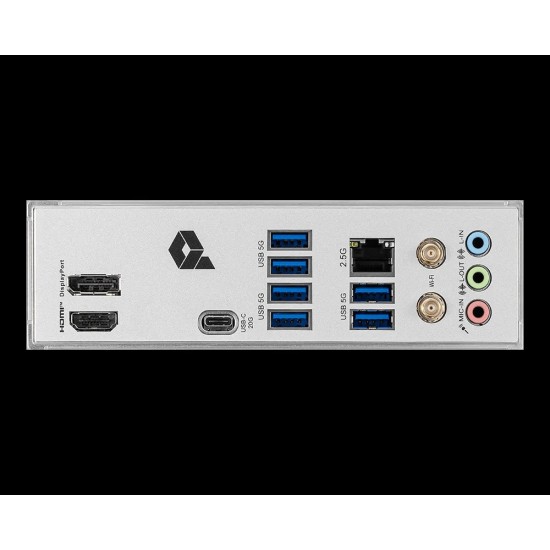

USB 4x USB 2.0 (Front)<br> 6x USB 5Gbps Type A (Rear)<br> 2x USB 5Gbps Type A (Front)<br> 1x USB 20Gbps Type C (Rear)<br> 1x USB 20Gbps Type C (Front)
Display Port 1x DisplayPort<br> Support DisplayPort 1.4, maximum resolution of 4K 60Hz* <br> 1x Type-C DisplayPort <br> Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* <br> *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
HDMI 1x HDMI<br> Support HDMI™ 2.1, maximum resolution of 4K 60Hz*<br> 1x DisplayPort<br> Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
Ports & Slots
PCI-E 4x PCI-E x16 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Storage 3x M.2 <br> M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices <br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices <br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices <br> 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) <br> 2x Power Connector(CPU_PWR) <br> 1x Power Connector(PCIE_PWR 8pin) <br> 1x CPU Fan <br> 1x Combo Fan (Pump_Sys Fan) <br> 4x System Fan <br> 2x Front Panel (JFP) <br> 1x Chassis Intrusion (JCI) <br> 1x Front Audio (JAUD) <br> 1x Tuning Controller connector(JDASH) <br> 3x Addressable V2 RGB LED connector (JARGB_V2) <br> 1x RGB LED connector(JRGB) <br> 1x TPM pin header(Support TPM 2.0) <br> 4x USB 2.0 ports <br> 2x USB 5Gbps Type A ports <br> 1x USB 20Gbps Type C ports
Warranty Information
Warranty 3 Years
