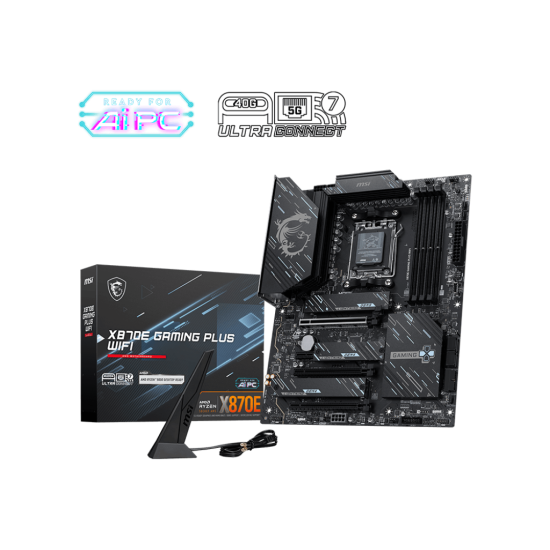

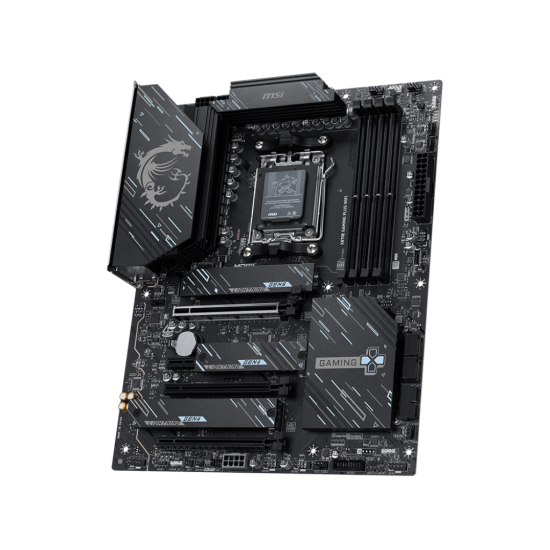

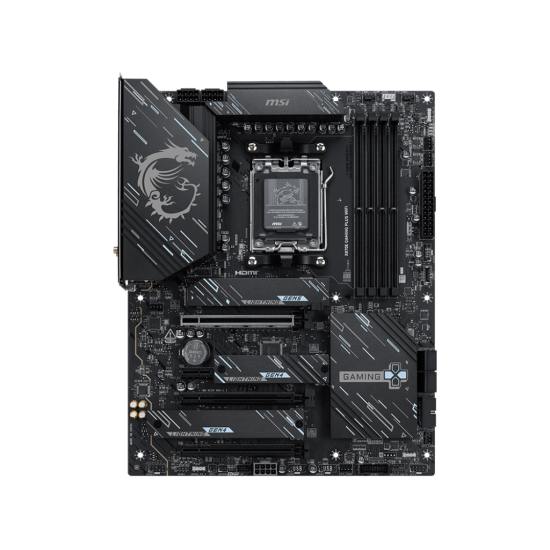

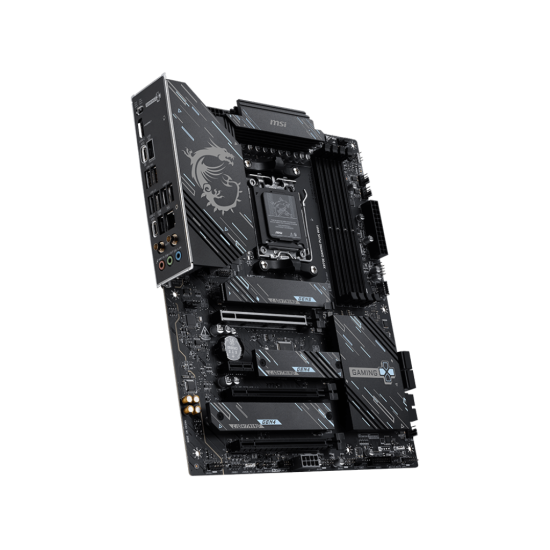

MSI X870E GAMING PLUS WIFI DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: X870E GAMING PLUS WIFI
- SKU: X870E GAMING PLUS WIFI
৳39,500
EMI starts at ৳13,574/month. View all 27 banks EMI plans >
Key Features:
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- RAM: 4x DDR5, Max Capacity: 256GB, Supports DDR5 8200MHz
- 3 x PCI-E x16 slot
- 1 x PCIe Gen 5x4 NVMe SSD, 2 x PCIe Gen 4x4 NVMe SSD
- Wi-Fi 7. Bluetooth 5.
Product Details
MSI X870E GAMING PLUS WIFI DDR5 AMD AM5 ATX Motherboard
The MSI X870E GAMING PLUS WIFI is a feature-rich ATX motherboard built for next‑generation AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform, delivering a solid foundation for high-performance gaming and productivity builds. Powered by the AMD X870E chipset and dual-channel DDR5 support up to 8200+ MT/s (OC), it offers fast memory performance and excellent upgrade headroom for modern GPUs and CPUs.
Performance & Power:
This board uses the AMD X870E chipset and a robust power design tailored for high-core-count Ryzen desktop processors, ensuring stable performance under heavy gaming or content creation workloads. With support for up to 256 GB of DDR5 across four DIMM slots and advanced memory overclocking features like AMD EXPO, it is ready for high-speed RAM configurations and future upgrades.
Storage and expansion:
The X870E GAMING PLUS WIFI features three M.2 slots, including one PCIe 5.0 x4 slot for ultra-fast NVMe SSDs, plus additional PCIe 4.0 M.2 slots for high-capacity storage. It also includes four SATA 6 Gb/s ports and multiple PCIe slots, including a PCIe 5.0 x16 slot for modern graphics cards, providing flexible expansion for gaming, streaming, and workstation setups.
Networking & connectivity:

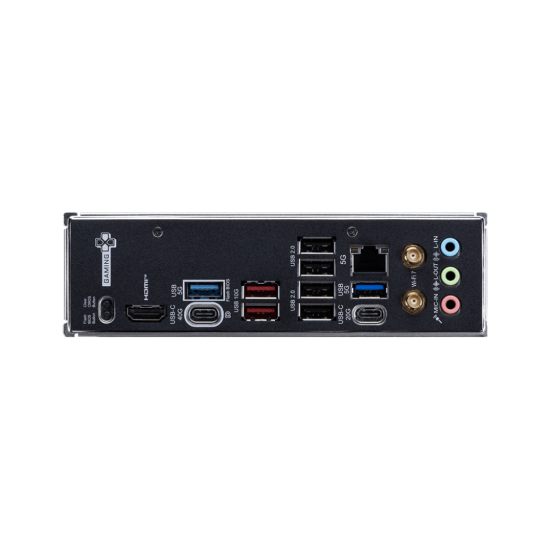

For networking, the motherboard combines a Realtek 5G LAN controller with integrated Wi‑Fi 7 and Bluetooth 5.4, delivering high-bandwidth, low-latency wired and wireless connections suitable for online gaming and high-speed file transfers. Rear I/O connectivity includes USB4 Type‑C (40 Gbps), USB 20 Gbps Type‑C, multiple USB-A 10 Gbps and 5 Gbps ports, plus HDMI 2.1 and DisplayPort over USB‑C for up to 4K high-refresh display output with supported processors.
Cooling, audio, & design:
MSI enhances reliability with extended heatsinks, EZ M.2 Shield Frozr, and multiple fan headers to keep VRM, chipset, and storage temperatures under control in gaming systems. The board also offers 7.1-channel HD audio powered by a Realtek ALC897 codec and multiple RGB/ARGB headers, combining immersive sound with customizable lighting to match modern gaming builds.
Specification
| Motherboard Specification | |
| Chipset | AMD X870E |
| Socket | AM5 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 256GB |
| Network & Wireless | |
| Wi-Fi | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Supports | |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors |
| Connectors | |
| USB | 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
| LAN | Realtek 8126VB 5G LAN |
| Display Port | 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| HDMI | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
| Ports & Slots | |
| Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot: • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series CPUs) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series CPUs) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Warranty Information | |
| Warranty | 3 Years |
