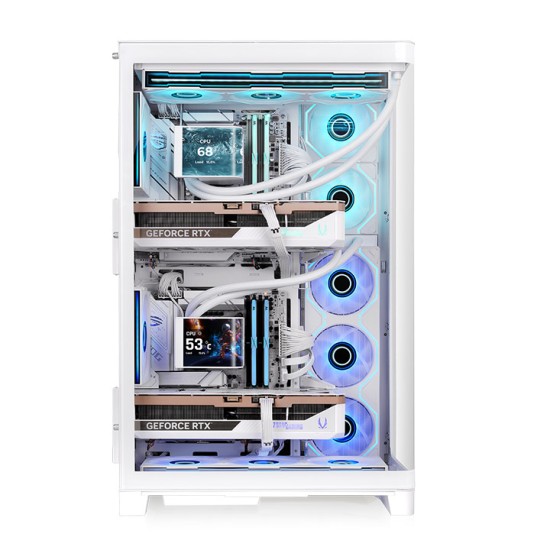

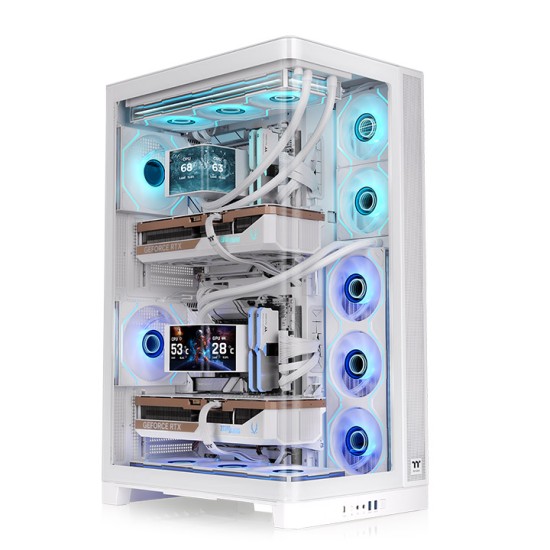

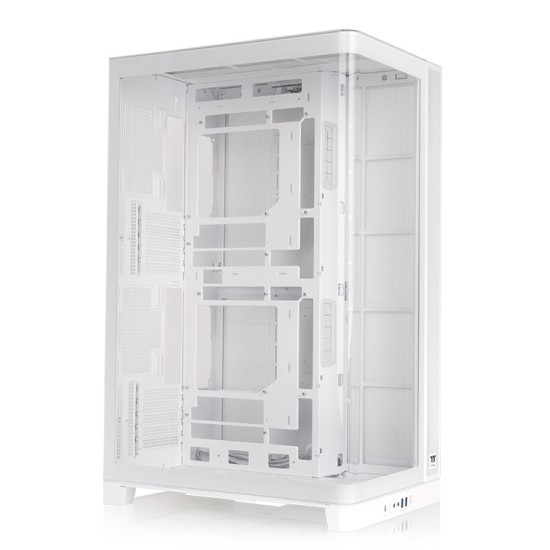

The CAPO X Dual System Chassis houses two fully independent systems in one case. A 4mm tempered glass side panel and dedicated I/O for both systems sit alongside support for up to 420mm GPUs, 180mm CPU coolers and radiators up to 420mm.
Two Systems. Zero Compromises.
More than a dual-system chassis, CAPO X opens up how you work, create and play — an AI agent workspace, a shared desk setup, or streaming without limits.
AI Agent Workspace
CAPO X keeps two systems fully separated, letting AI agents run heavy or sensitive tasks on one system safely while files move through the cloud and the main system stays protected. The stacked design and dual I/O panels keep both systems easy to reach on one desk.
Shared Setup
For couples, roommates or friends sharing a desk, CAPO X gives each person their own system in one setup. The stacked design saves space and keeps both builds visible in a clean, balanced look.
Streaming Without Limits
Separate gaming and streaming into two systems — one runs the game, the other handles streaming and chat, so the stream stays smooth even when gameplay gets heavy.
Dual Motherboard Support

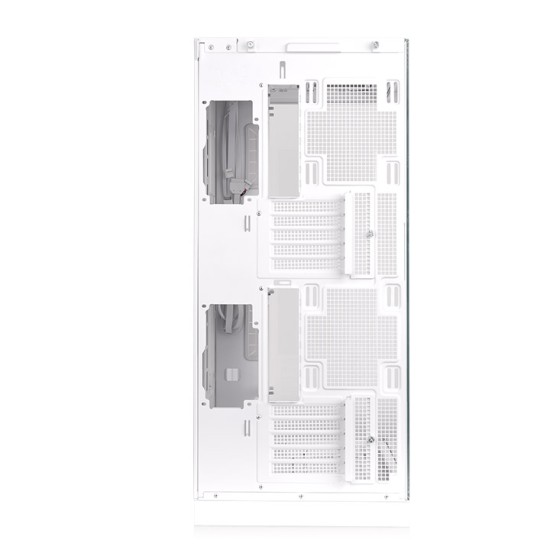

The motherboard tray supports the latest hidden-connector Micro-ATX boards including ASUS BTF, MSI PROJECT ZERO and GIGABYTE PROJECT STEALTH, and takes up to two M-ATX boards in one case.
Solid Structural Panel
Structural panels use 1mm SPCC steel to carry the load of two systems for enhanced stability and durability.
Good Radiator Support
A 360mm radiator can sit on the top and the motherboard side simultaneously, with well-designed cold air intakes and hot air exhausts keeping internal temperatures low.
Flexible Storage Support
The top drive area takes three 2.5” SSDs, or one 3.5” HDD plus two 2.5” SSDs. The bottom area takes two 2.5” SSDs, or one 3.5” HDD plus one 2.5” SSD.
| Case Specification | |
| Cooling System | N/A (no pre-installed fans) |
| Type | Dual System Case |
| Tempered Glass Panel | 4mm Tempered Glass x 1 |
| CPU | CPU cooler max height: 180mm |
| GPU | VGA max length: 420mm |
| PSU | Upper System: Standard PS2 PSU (optional), max 250mm | Lower System: Standard PS2 PSU (optional), max 250mm |
| Drive Bays | Upper: 3 x 2.5" or 1 x 3.5" + 2 x 2.5" | Lower: 2 x 2.5" or 1 x 3.5" + 1 x 2.5" |
| Pre- Installed Fans | N/A |
| Supports | |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm / 2 x 140mm, 1 x 140mm | Right: 5 x 120mm, 4 x 120mm, 3 x 120mm, 2 x 120mm, 1 x 120mm / 4 x 140mm, 3 x 140mm, 2 x 140mm, 1 x 140mm | Rear: 1 x 120mm, 1 x 140mm (Upper) / 1 x 120mm, 1 x 140mm (Lower) | Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm / 2 x 140mm, 1 x 140mm |
| Motherboard Support | Upper System: 9.6" x 9.6" (Micro ATX), 6.7" x 6.7" (Mini ITX) | Lower System: 9.6" x 9.6" (Micro ATX), 6.7" x 6.7" (Mini ITX) | Hidden-Connector Motherboard: 9.6" x 9.6" (Micro ATX) |
| Radiator Support | Top (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 280mm, 1 x 140mm | Right (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 420mm, 1 x 280mm, 1 x 140mm (2 x 280mm) | Rear (AIO): 1 x 120mm, 1 x 140mm (Upper) / 1 x 120mm, 1 x 140mm (Lower) |
| Ports & Slots | |
| Expansion Slots | 10 Slots (5 for Upper / 5 for Lower) |

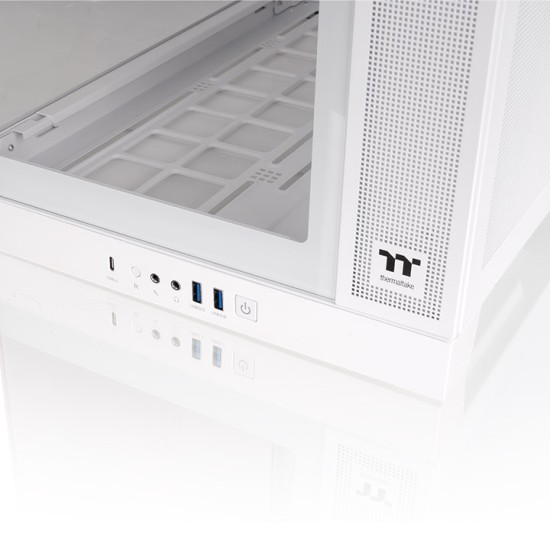

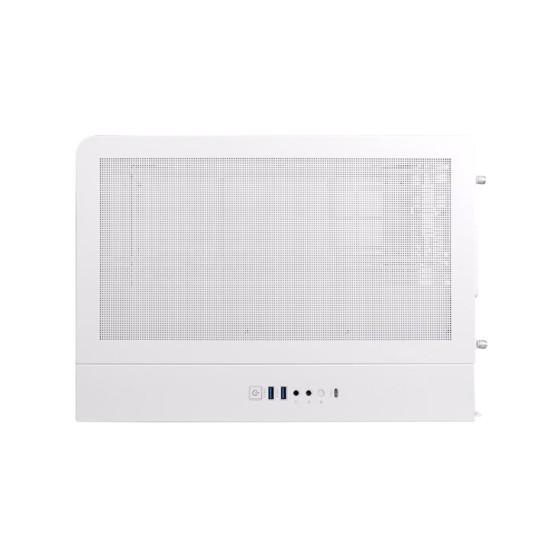

| I/O Port | Upper System: USB 3.2 Gen 2 Type-C x 1, USB 3.0 x 2, HD Audio x 1 | Lower System: USB 3.2 Gen 2 Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Physical Specification | |
| Colors | Snow |
| MATERIALS | SPCC |
| Dimensions (W x D x H) | 691 x 305 x 448 mm (H x W x D) |
| Warranty Information | |
| Warranty | 1 Year |
