- Stock: In Stock
- Brand: Thermaltake
- Model: CA-1Z8-00M1WN-00
- SKU: CA-1Z8-00M1WN-00
Key Features:
- CTE (Centralized Thermal Efficiency) Form Factor
- Compatible with Hidden-Connector Motherboards
- SPCC E-ATX Mid Tower Chassis
- USB 3.0 x 2, Type C x 1, HD Audio x 1 Front Ports
- Dual Interchangeable Front Panels

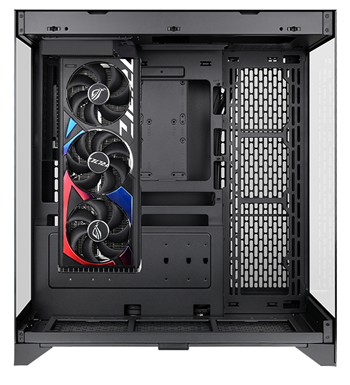

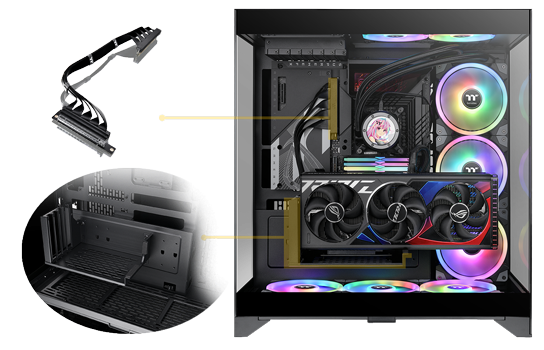

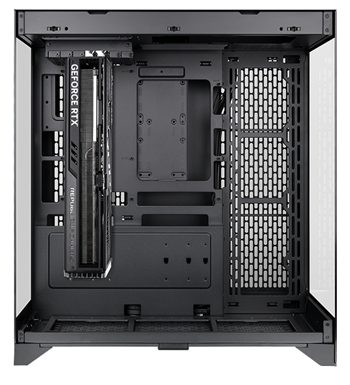

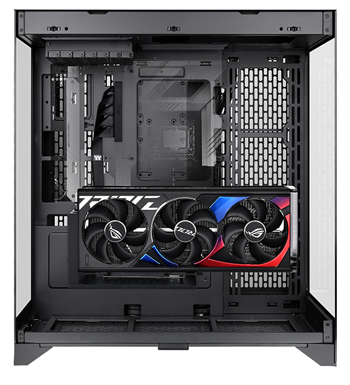

- Three-way GPU Installation
Thermaltake CTE E550 TG Black Mid Tower Dual Chamber PC Case

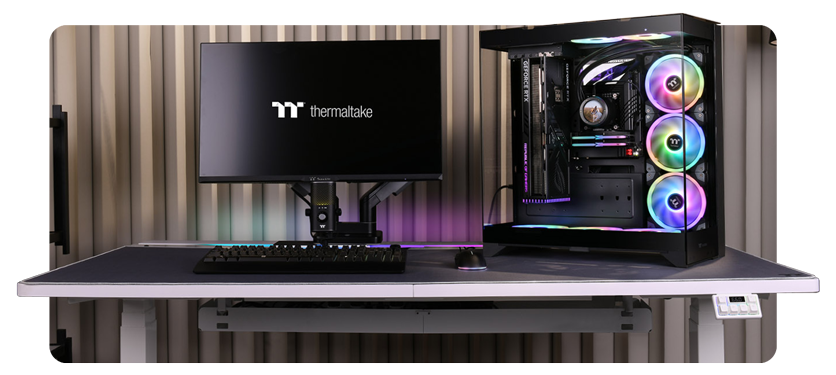

Where Style Meets FunctionDesigned for those seeking an an unobstructed view of their build, the CTE E550 TG is a dual chamber mid-tower chassis with three TG panels that allows users to fully display components in style. It supports the latest Back-Connect motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility. This case excels in cooling support, accommodating up to a 420mm AIO radiator on the side, with space for up to eight 120mm fans or six 140mm fans in the chassis. Combining aesthetics with compatibility, the CTE E550 TG is the perfect choice to combine style with functionality.
Mid TowerForm Factor
Tempered GlassWindows
Up to 420mmRadiator Support
8 x 120mm / 6 x 140mmFan Support
Where Style Meets FunctionDesigned for those seeking an an unobstructed view of their build, the CTE E550 TG is a dual chamber mid-tower chassis with three TG panels that allows users to fully display components in style. It supports the latest Back-Connect motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility. This case excels in cooling support, accommodating up to a 420mm AIO radiator on the side, with space for up to eight 120mm fans or six 140mm fans in the chassis. Combining aesthetics with compatibility, the CTE E550 TG is the perfect choice to combine style with functionality.
Mid TowerForm Factor
Tempered GlassWindows
Up to 420mmRadiator Support
8 x 120mm / 6 x 140mmFan Support
Compatible with Back-Connect Motherboards

Back-Connect CompatibilityCreated for next-generation Back-Connect motherboards, the CTE E550 TG features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

Back-Connect CompatibilityCreated for next-generation Back-Connect motherboards, the CTE E550 TG features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
Display It Your Way



Your Cooling Dreams Come True

There are three removable filters at the top, bottom, and side of the chassis to provide excellent protection against dust; with each beaing easily removable for cleaning.

There are three removable filters at the top, bottom, and side of the chassis to provide excellent protection against dust; with each beaing easily removable for cleaning.
Opportunity for Expansion

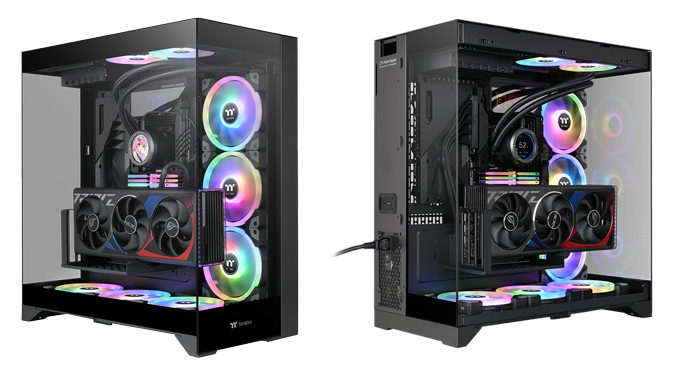

The CTE E550 TG is a panoramic mid tower with tempered glass panels on the front, rear and left side. These crystal-clear panels offer an ultra-wide viewing angle normally only available with an open-frame chassis, providing an unparalleled visual display of your internal components.
MotherboardE-ATX / ATX / mATX / mITX

Graphics CardMax Length: 415 / 443mm

Power SupplyMax Length: 220mm

CPU CoolerMax Height: 166mm

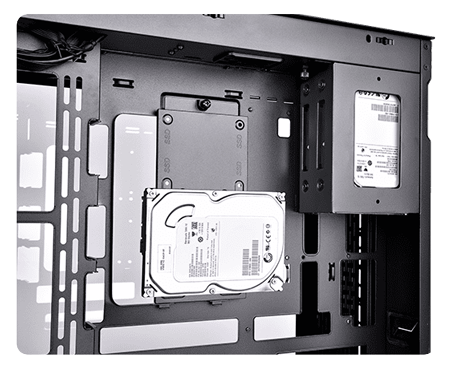

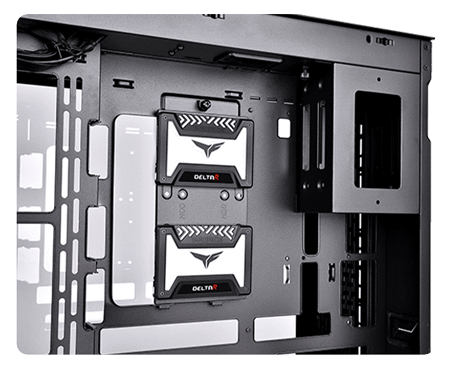

Built with high-performance cooling in mind, this case supports various cooling fan arrangements; with a choice of up to 14 120mm fans, or 12 140mm fans, or even a mixture of both alongside full-sized radiators. This case also comes with enough options for storage to enable you to simply install your drives and not have to worry about needing the room to upgrade in future; with two 3.5" bays and another two plates for either two 2.5" drives or another, single 3.5" hard-disk drive.


The CTE E550 TG is a panoramic mid tower with tempered glass panels on the front, rear and left side. These crystal-clear panels offer an ultra-wide viewing angle normally only available with an open-frame chassis, providing an unparalleled visual display of your internal components.
MotherboardE-ATX / ATX / mATX / mITX

Graphics CardMax Length: 415 / 443mm

Power SupplyMax Length: 220mm

CPU CoolerMax Height: 166mm

Built with high-performance cooling in mind, this case supports various cooling fan arrangements; with a choice of up to 14 120mm fans, or 12 140mm fans, or even a mixture of both alongside full-sized radiators. This case also comes with enough options for storage to enable you to simply install your drives and not have to worry about needing the room to upgrade in future; with two 3.5" bays and another two plates for either two 2.5" drives or another, single 3.5" hard-disk drive.


| Case Specification | |
| Type | Mid Tower |
| Tempered Glass Panel | 4mm Tempered Glass x 2 |
| CPU | CPU cooler max height: 166mm |
| GPU | VGA max length: 415mm (with radiator) 443.8mm (without radiator) |
| PSU | PSU max length: 220mm |
| Drive Bays | 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5” |
| Supports | |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm |
| Motherboard Support | 6.7” x 6.7” (Mini ITX) 9.6” x 9.6” (Micro ATX) 12” x 9.6” (ATX) 12” x 10.5” (E-ATX) |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bottom (DIY only): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
| Ports & Slots | |
| I/O Port | USB 3.0 x 2, Type-c x1, HD Audio x 1 |
| Expansion Slots | 7 |
| Physical Specification | |
| Colors | Black |
| MATERIALS | SPCC |
| Dimensions (W x D x H) | 558.5 x 270 x 513mm |
| Weight | 15.85 kg |
| Warranty Information | |
| Warranty | 1 Year |
