Build Faster. Upgrade Smarter. The Dockpower series uses a patent-filed docking power architecture that separates cable management from power installation, solving one of the biggest problems of fitting a power supply into a confined chassis. Cables are pre-installed once and reused across future upgrades — you simply swap the power supply main unit without touching a single cable.
The Next Generation Docking Power Architecture

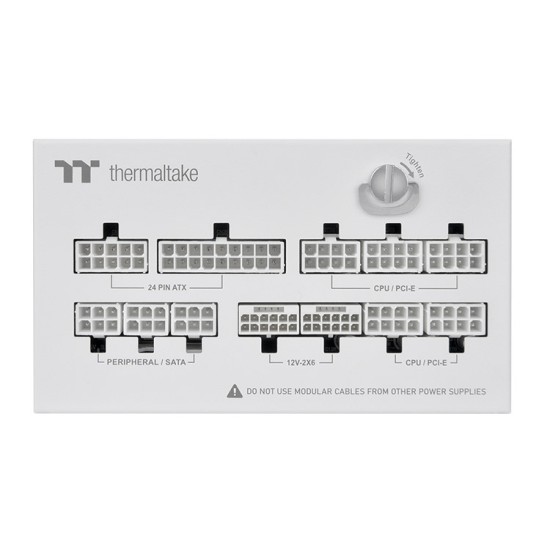

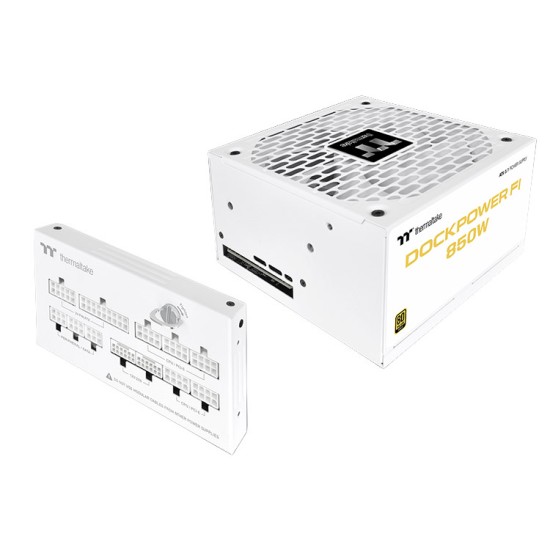

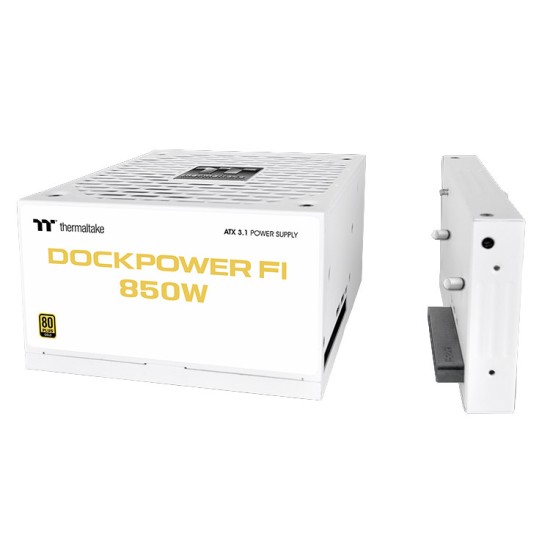

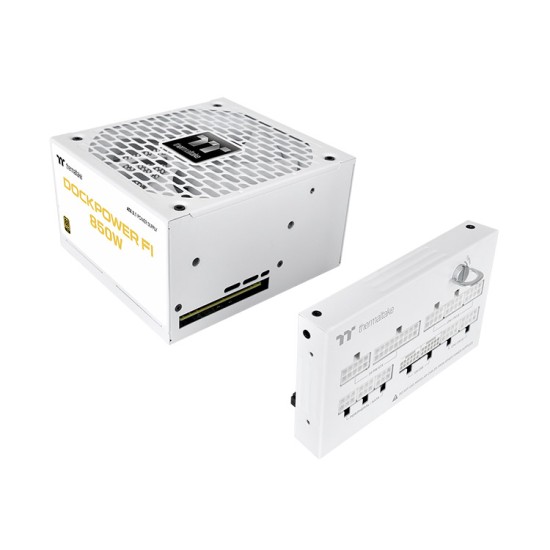

The Dock Module is the bridge between power and system, holding every cable in place. The Power Supply Main Unit handles high-efficiency power conversion. Server-grade contacts with up to 30μ gold plating give lower contact resistance, better corrosion protection and exceptional durability, and a D-ring screw locks the two halves together for a firm, reliable connection.
Build Faster — Every Minute Counts
Install the power supply main unit, pre-install the cables with the dock module, then dock and lock. No connecting cables inside the case, no laying the chassis on its side.
Upgrade Smarter — Swap. Dock. Done.
Upgrading means swapping the main unit alone. The dock module and all cables stay in place — nothing to disconnect, re-route or reinstall.
ATX 3.1 / PCIe Gen 5.1 Ready
Fully compliant with ATX 3.1 and PCIe Gen 5.1, with a native 12V-2x6 connector rated at 600W. Its dual-colour design gives easy visual confirmation of a secure connection.
Fully Modular Low-Profile Cables
Main Power (20+4Pin) x1 · ATX 12V (4+4Pin) x2 · PCIe (6+2Pin) x4 · 12V-2x6 (12+4Pin) 600W x1 · SATA (5Pin) x6 · Peripheral (4Pin) x4. Flat black cables keep clutter down and airflow up.
High Amperage Single +12V Rail
A robust single +12V rail delivers stable, high-current power for broad system compatibility, with advanced DC-to-DC and high-efficiency regulation maintaining voltage precision and clean output.
Industry-Grade Safety Protections
OCP, OVP, UVP, OPP, OTP and SCP guard against electrical faults.
80 PLUS Gold Certified
Up to 90% energy efficiency, certified to 80 PLUS® Gold. Supports Intel C6/C7 states and Deep Power Down, meets Energy Star 5.0 and ErP standards, and complies with EU WEEE and RoHS.
| Power Supply Specification | |
| WATT | 850W |
| Fan Size | 135mm Hydraulic Bearing Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| Certification | 80 PLUS Gold |
| HOLD UP TIME | > 17msec at 80% load |
| MTBF | 100,000 hrs minimum |
| POWER GOOD SIGNAL | 100-250 msec |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC |
| OPERATING HUMIDITY | 5% to 85%, non-condensing |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| PCI-E 6+2PIN | 4 |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| Voltage | 100-240V~ |
| Frequency Range | 50Hz - 60Hz |
| Current | 10A Max. |
| Modular Type | Full Modular |
| Total Power | 850W |
| DC Output | +3.3V 20A | +5V 20A | +12V 70.8A | -12V 0.3A | +5VSB 3A |
| Physical Specification | |
| Dimensions (W x D x H) | 150 x 86 x 160 mm |
| Warranty Information | |
| Warranty | 10 Years |
