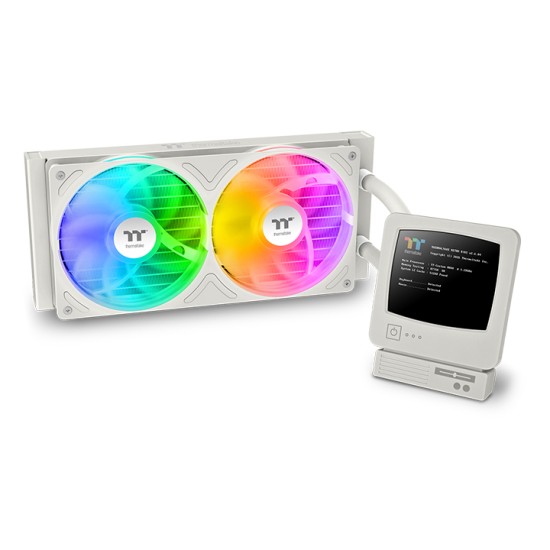

Retro 240 Ultra ARGB Sync AIO Liquid Cooler features a CRT-style 3.7” LCD display, delivering nostalgic aesthetics with visual customization. With the innovative AI Forge function, users can easily create personalized backgrounds. The single-frame fan design simplifies installation while enhancing cable management. Paired with high-performance ARGB fans operating at speeds of up to 2500 RPM, it delivers exceptional cooling performance.
Back to Retro. Forward in Performance.
The Retro Ultra series combines nostalgic styling with modern cooling performance. A classic beige colour scheme and a 3.7” LCD display inspired by vintage CRT monitors capture the spirit of retro computing, while TT RGB PLUS 3.0 supplies extensive customization and the AI Forge function for generating creative, high-quality images.

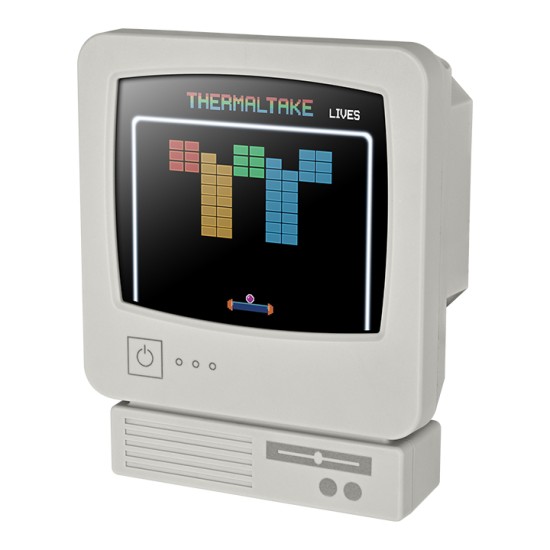

CRT-style 3.7” LCD Display
The 3.7” LCD runs at 720 x 608 resolution with sharp, vivid visuals, supporting real-time system monitoring, local weather and time, and dynamic image or video backgrounds (JPG, GIF, PNG, MP4, MOV, AVI). An exclusive built-in retro game adds an interactive touch.
Unleash Limitless Creativity with AI Forge
Type a prompt and TT RGB PLUS 3.0 instantly generates a background for the display. Creations are saved in the software, can be freely edited, and can be overlaid with real-time system information.

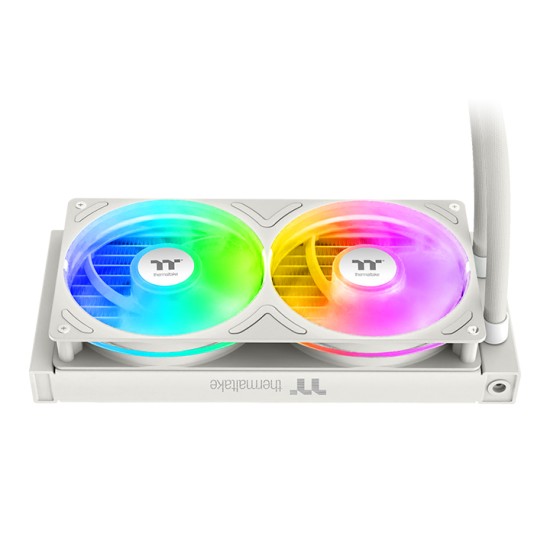

Elevate ARGB Fan Performance to the Next Level
A 240mm PWM fan module — a single-frame unit combining two 120mm fans — delivers 85.29 CFM airflow and 3.86 mm-H2O static pressure per fan at 37.8 dB-A.
Say Goodbye to Excessive Cables
The single-frame fan design minimises cable clutter, making installation faster and easier while keeping the build neat.
Enhanced Radiator with a Compact Design

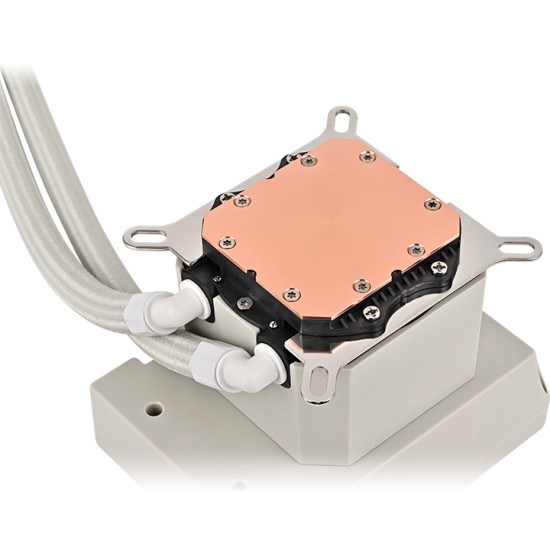

A 27mm slim radiator with a thickened 20mm copper chamber keeps installation easy while improving heat transfer. The high-quality pump maximises water circulation across a copper base plate for rapid thermal conductivity.

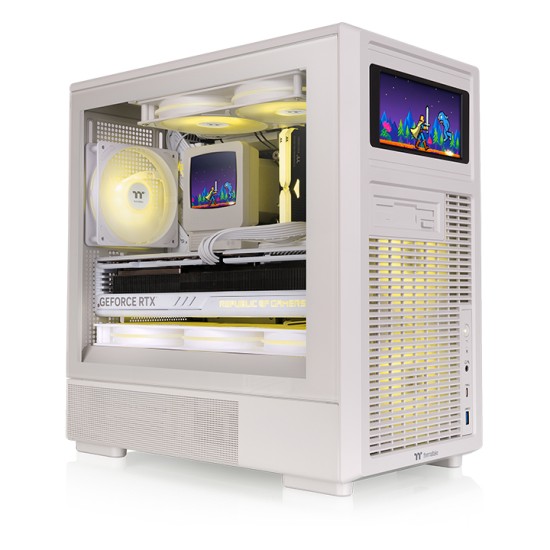

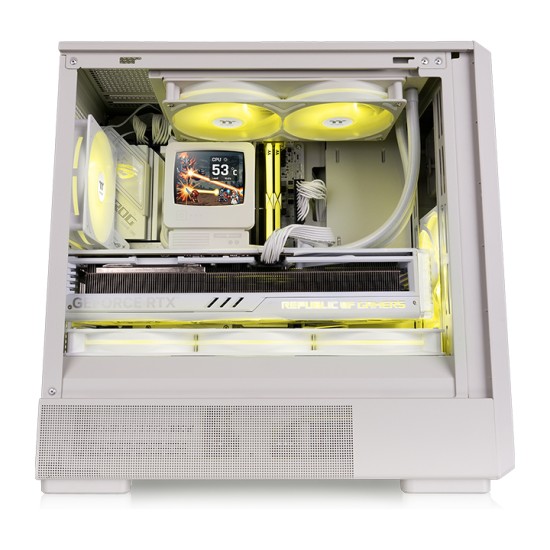

Thermaltake Retro System
The Retro Ultra AIO series pairs with the Thermaltake Retro chassis range — same classic beige finish and retro-inspired detailing for a complete themed build.
Spectacular Lighting Effects
16.8 million colours via 5V ARGB, syncing with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, BIOSTAR and ASRock Polychrome, plus TT RGB PLUS 3.0 and the TT PlayLink mobile app.
| Core Component | |
| Display | 3.7" TFT-LCD (CRT-style) | Resolution: 720 x 608 (RGB) |
| Fan Specification | |
| Compatibility | Intel: LGA 2066/2011-3/2011/1851/1700/1366/1200/1156/1155/1151/1150 | AMD: AM5/AM4 |
| Fan Speed | Fan: PWM 500~2500 R.P.M | Pump Motor: PWM 800~2500 R.P.M |
| Air Flow | 85.29 CFM (per fan) |
| Air Pressure | 3.86 mm-H2O (per fan) |
| Noise (dBA) | 37.8 dB-A (per fan) |
| Connector | Micro USB to USB 9-Pin (display) | 2510 - 4 Pin / ARGB - 3 Pin (fan & pump) |
| Power | |
| Power consumption MAX | Pump: 4.2W | Display: 2.5W | Each Fan: 7.2W (12V) & 3W (5V) |
| Physical Specification | |
| MATERIALS | Water Block: Copper | Tube: 460mm (Rubber) | Radiator: Aluminum |
| Dimensions (W x D x H) | Radiator: 277 x 120 x 27 mm | Fan module: 240 x 120 x 25 mm |
| Warranty Information | |
| Warranty | 5 Years |
