- Stock: In Stock
- Brand: Thermaltake
- Model: PS-TPD-0750NNFAGK-C
- SKU: PS-TPD-0750NNFAGK-C
Key Features:
- 80 Plus Gold
- PCIe 5.1 (12V-2x6, 300W) & ATX 3.1
- 120mm Fluid Dynamic Bearing Fan
- 4 x PCIe Connectors (6+2 pin)
- Protection: OVP/UVP/OCP/OPP/OTP/SCP

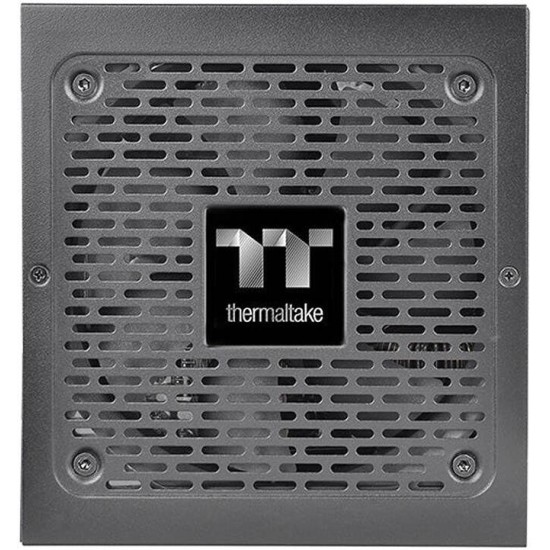

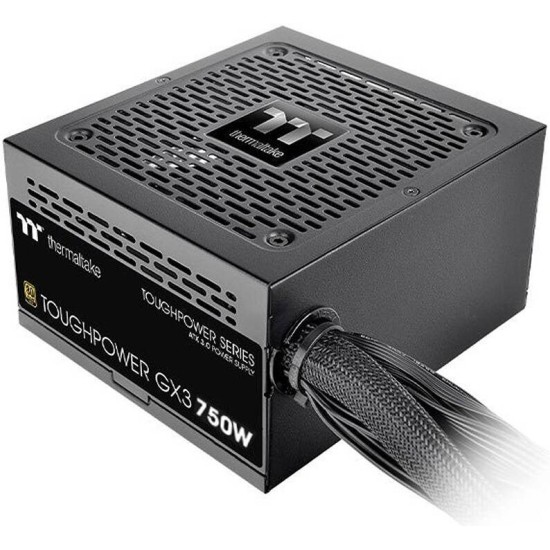

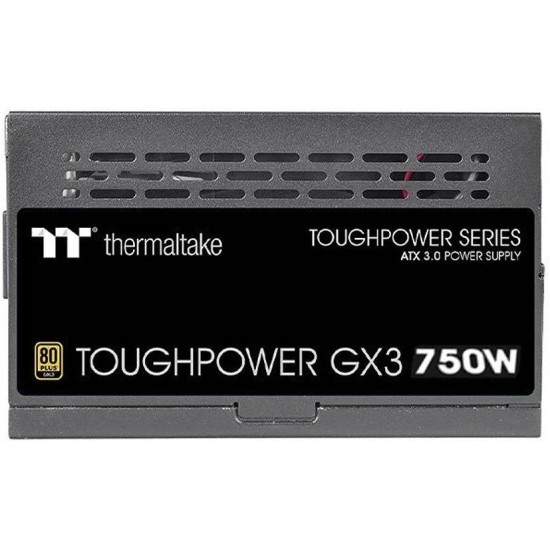

Thermaltake ToughPower GX3 750W 80 Plus Gold Power Supply
This 80 PLUS Gold-certified ToughPower GX3 Power Supply from Thermaltake provides up to 750W of power to the components in your PC build. The 120mm cooling fan keeps your components cool and won't spin until the power demand exceeds 30% load. The ToughPower GX3 power supply comes with four PCIe connectors for graphics cards and other devices, a PCIe 5.1 12V-2x6 connector for latest-gen NVIDIA graphics cards, and eight SATA connectors for storage devices and disc drives. The ATX form factor fits most cases, and the flat cables make cable management a breeze.
Power Up the Next Generation Hardware
To fully support next-gen hardware, Toughpower GX3 Gold Series is designed to meet ATX 3.1 standards, including a PCIe 5.1 12V-2x6 connector. The GX3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.
Fully Compatible with Intel ATX 3.1 Standards
Toughpower GX3 Gold series is fully compatible with Intel ATX 3.1 Specifications, which supports up to 200% power excursion, reaches 60% low load efficiency, and complies with required power supply timing standards.
PCIe Gen 5.1 Ready
Toughpower GX3 Gold series comes with a 16-pin connector to offer powerful and stable performance, allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12V-2x6’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12V-2x6) PCIe connector of the GX3 750W can deliver up to 450W for PCIe 5.1 graphics cards.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increases, so does their power demand. The GX3 series is designed to support NVIDIA and AMD graphics cards and is ready to supply the graphics cards according to their different connections.
| Power Supply Specification | |
| WATT | 750W |
| Fan Size | 120mm Fluid Dynamic Bearing Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| Certification | 80 PLUS Gold certified |
| Continuous Power | 750W |
| HOLD UP TIME | > 17msec |
| MTBF | 100,000 hrs minimum |
| POWER GOOD SIGNAL | 100-250 msec |
| Safety Approval | CE, UKCA, cTUVus, TÜV, FCC, IC, BSMI, EAC, & CB |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| PCI-E 6+2PIN | 4 x PCI-E 6+2PIN<br> 1 x PCIE 12+4PIN (300W) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| Voltage | 100 - 240Vac |
| Frequency Range | 50Hz - 60Hz |
| Total Power | 750W |
| DC Output | 750W |
| Warranty Information | |
| Warranty | 5 Years (Burn Warranty Included) |
