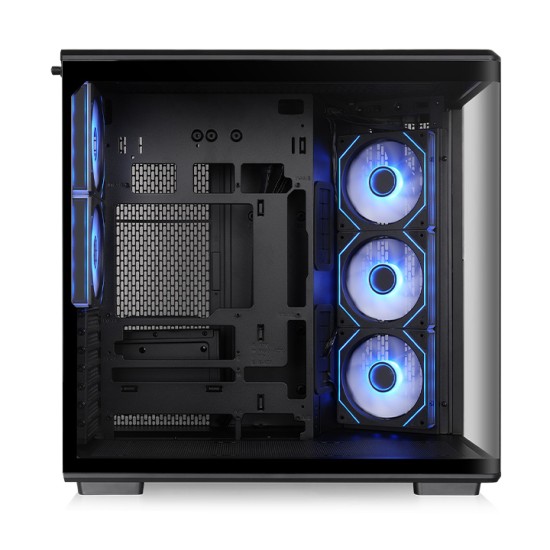

The View 590 TG ARGB is an ATX mid tower built around a one-piece 4mm curved tempered glass panel, with three 120mm Infinity ARGB Reverse PWM fans on the motherboard side and two 120mm Infinity ARGB PWM fans at the rear.
Curved Tempered Glass

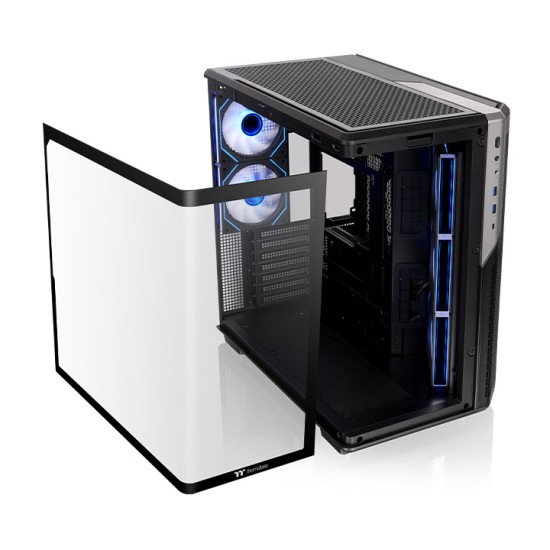

A single piece of 4mm curved tempered glass wraps front to side for an uninterrupted view of the build.
Pre-installed ARGB Fan System
Three 120mm Infinity ARGB Reverse PWM fans (1500 rpm, 24.9 dBA) on the motherboard side and two 120mm Infinity ARGB PWM fans (1500 rpm, 21.8 dBA) at the rear supply airflow and lighting out of the box.
Broad Motherboard Support
Mini ITX, Micro ATX, ATX and SSI-CEB (12” x 10.5”), including hidden-connector Micro ATX and ATX boards.
Dual 360mm Radiator Support
A 360mm radiator fits at the top and a second at the motherboard side, with 280mm, 240mm, 140mm and 120mm options and 120mm at the rear.
Storage Support
Three 3.5” drives plus two 2.5”, or two 3.5” plus three 2.5”.
| Case Specification | |
| Cooling System | Right (intake): 120 x 120 x 25 mm Infinity ARGB PWM Reverse Fan (1500 rpm, 24.9 dBA) x 3 | Rear (exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 2 |
| Type | Mid Tower |
| Tempered Glass Panel | 4mm Curved Tempered Glass x 1 |
| CPU | CPU cooler max height: 165mm |
| GPU | VGA max length: 435mm (350mm with AIO installed at M/B side) |
| PSU | Standard PS2 PSU (optional) | Max length: 270mm (180mm with HDD installed) |
| Drive Bays | 3 x 3.5" + 2 x 2.5" or 2 x 3.5" + 3 x 2.5" |
| Pre- Installed Fans | 5 (3 x 120mm Infinity ARGB Reverse PWM + 2 x 120mm Infinity ARGB PWM) |
| Supports | |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm / 2 x 140mm, 1 x 140mm | Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm | Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm | Rear: 2 x 120mm, 1 x 120mm |
| Motherboard Support | 6.7" x 6.7" (Mini ITX) | 9.6" x 9.6" (Micro ATX) | 12" x 9.6" (ATX) | 12" x 10.5" (SSI-CEB) | Hidden-Connector: Micro ATX, ATX |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 280mm, 1 x 140mm | Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm | Rear: 1 x 120mm |
| Ports & Slots | |
| Expansion Slots | 7 |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Physical Specification | |
| Colors | Black |
| MATERIALS | SPCC |
| Dimensions (W x D x H) | 473 x 290 x 477 mm (H x W x D) |
| Warranty Information | |
| Warranty | 1 Year |
