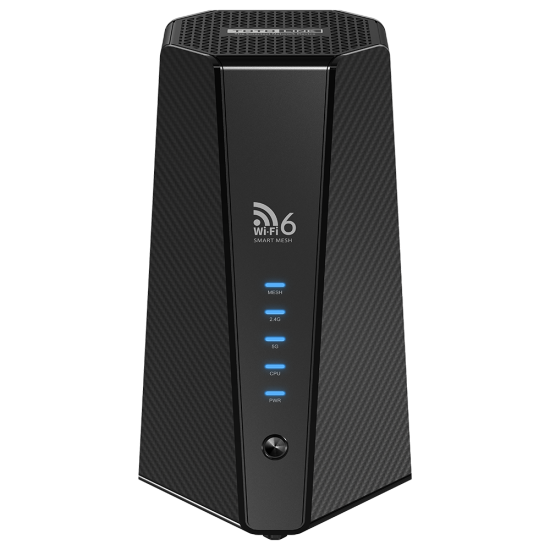

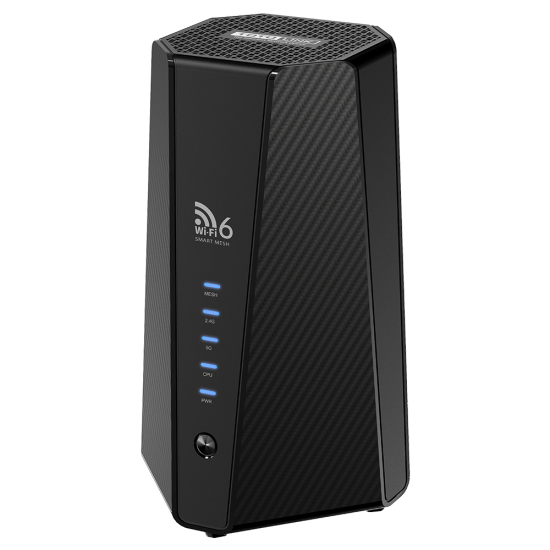

TOTOLINK X30 AX3000 Wi-Fi 6 Smart Mesh System
- Stock: In Stock
- Brand: TOTOLINK
- Model: X30
- SKU: X30
৳0
Key Features:
- Wi-Fi 6 (802.11ax).
- Dual Band. 5GHz: Up to 2402Mbps & 2.4GHz: Up to 574Mbps.
- 2 x Internal Antennas
- OFDMA + MU-MIMO for low-latency efficiency.
- 1.3GHz Dual-Core CPU for 256 devices.
- WPA3 security, VPN, and parental controls.
Product Details
TOTOLINK X30 AX3000 Wi-Fi 6 Smart Mesh System
Elevate your home network with the TOTOLINK X30 SE, an AX3000 Wi-Fi 6 Smart Mesh System designed for high-speed, reliable connectivity. Supporting the IEEE 802.11ax standard, it delivers up to 3000Mbps total speed 2402Mbps on 5GHz and 574Mbps on 2.4GHz thanks to 160MHz bandwidth and 1024-QAM modulation. This makes it perfect for 4K streaming, online gaming, and fast downloads across multiple devices, while remaining compatible with older Wi-Fi standards.
Superior Processing Power
Powered by MediaTek's Filogic 820 Dual-Core 1.3GHz CPU on a 12nm process, the X30 SE handles up to 256 simultaneous users without lag. OFDMA increases network capacity by four times, allowing efficient data transmission to multiple devices and reducing congestion. MU-MIMO further enhances performance by enabling simultaneous data streams to several clients.
Seamless Coverage and Mesh Networking
Easy Mesh technology creates a unified network with single SSID for whole-home coverage and automatic roaming as devices move. Beamforming directs signals for stronger 5GHz range, while full Gigabit WAN and LAN ports ensure wired speeds match wireless capabilities for PCs, TVs, and consoles.
Energy Efficiency & Smart Controls
Target Wake Time (TWT) optimizes device sleep cycles to save battery life and reduce power use. Advanced features include WPA3 security, VPN server, Guest Network, Parental Controls, Smart QoS for traffic prioritization, Wi-Fi Scheduler, and IPv6 support. Easy setup via web interface or TOTOLINK App simplifies management for large homes or offices.
Specification
| Network & Wireless | |

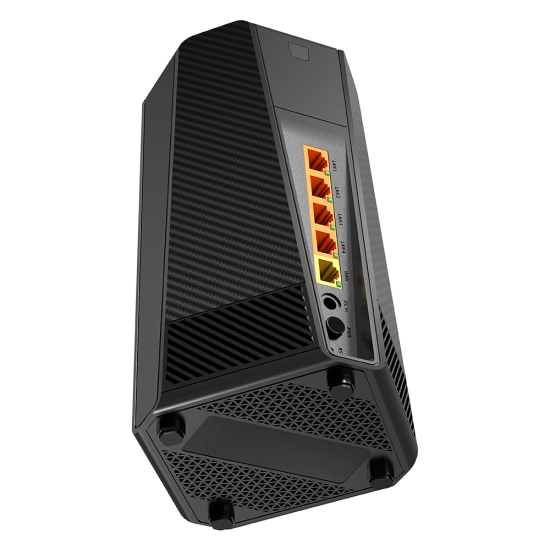

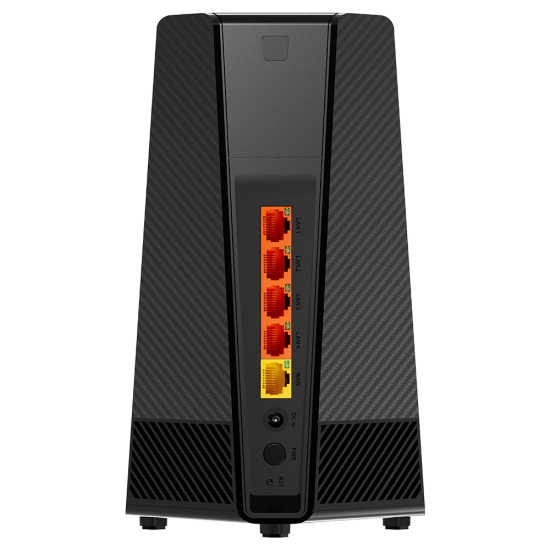

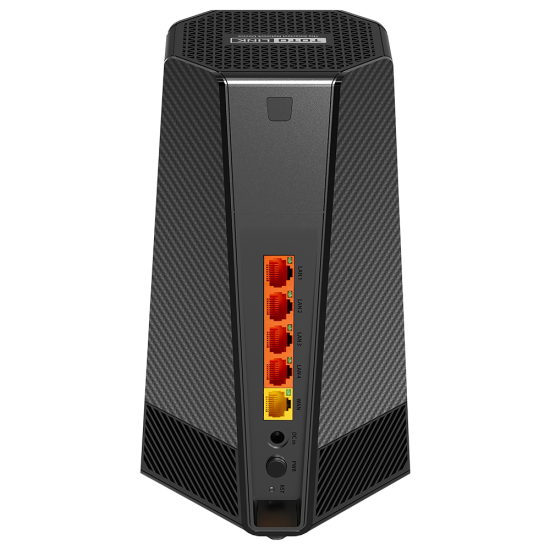

| Device Interfaces | 4 x 1000Mbps Adaptive LAN Ports 1 x 1000Mbps Adaptive WAN Port |
| Ethernet | Full Gigabit Ports (10/100/1000 Mbps) 1 x 1000Mbps WAN Port (Wide Area Network) 4 x 1000Mbps LAN Ports (Local Area Network) |
| Security | MAC Filtering IP/Port Filtering Virtual Server (Port Forwarding) URL Filtering VPN passthrough DMZ |
| WAN Interface | 1 x 1000Mbps WAN Port 4 x 1000Mbps LAN Port |
| Antenna | 2 x Internal Antennas |
| Button | 1 x RST Button 1 x MESH Button 1 x Power On/Off Button |
| Network Standard | IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| LED Indicator | 1 x PWR 1 x CPU 1 x 5G 1 x 2.4G 1 x MESH |
| Frequency | 2.4~2.4835GHz 5.18~5.24GHz 5.745~5.825GHz |
| Operating Humidity | 10%~90% non-condensing |
| Operating Temperature | -40℃~70 ℃ (-40 ℉~158℉) |
| Storage Humidity | 5%~90% non-condensing |
| Storage Temperature | -40℃~70 ℃ (-40 ℉~158℉) |
| Data Rate | 2.4GHz: Up to 574Mbps (2*2 40MHz) 5GHz: Up to 2402Mbps (2*2 160MHz) |
| Physical Specification | |
| Colors | Black |
| Dimensions (W x D x H) | 127 x 142 x 216mm (L x W x H) |
| Warranty Information | |
| Warranty | 1 Year |
